Monolithic Power Systems Inc. MP163BGS-33-P
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $0.94 | $0.94 |
| 15+ | $0.91 | $13.65 |
| 25+ | $0.89 | $22.25 |
| 50+ | $0.84 | $42.00 |
| 100+ | $0.74 | $74.00 |
| N+ | $0.15 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Monolithic Power Systems Inc. |
| Product Series | MP |
| Packaging | Tape & Reel (TR) | |
| Output Isolation | Non-Isolated |
| Internal Switch(s) | Yes |
| Voltage - Breakdown | 700V |
| Topology | Boost, Buck, Buck-Boost, Flyback |
| Voltage - Start Up | - |
| Voltage - Supply (Vcc/Vdd) | 5.3V ~ 6.5V |
| Duty Cycle | - |
| Frequency - Switching | - |
| Power (Watts) | - |
| Fault Protection | Current Limiting, Open Loop, Over Load, Over Temperature, Short Circuit, UVLO |
| Control Features | EN, Frequency Control, Soft Start |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |

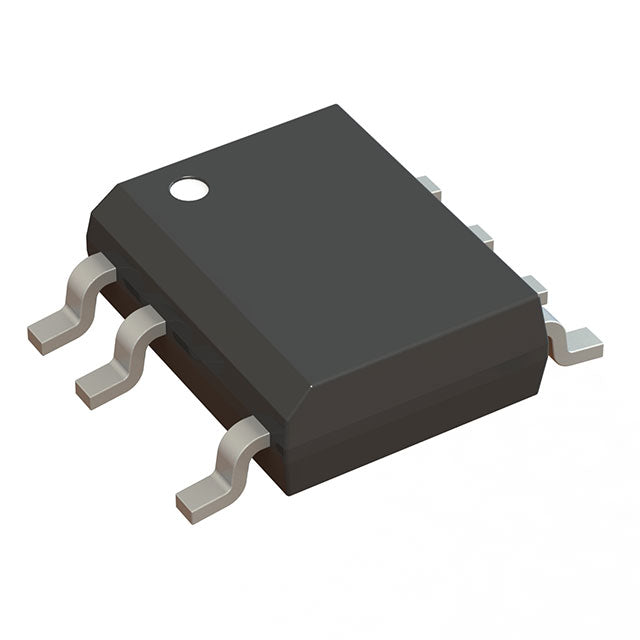

| Package / Case | 8-SOIC (0.154", 3.90mm Width), 7 Leads |
| Supplier Device Package | 8-SOIC-7B |
| ROHS |  |
The MP163BGS-33-P from Monolithic Power Systems is a non-isolated offline regulator featuring a 700V integrated switch and support for Boost, Buck, Buck-Boost, and Flyback topologies. It operates from a 5.3V ~ 6.5V Vcc supply and includes current limiting, open loop, over load, over temperature, short circuit, and UVLO protection. Control features include EN, frequency control, and soft start. Supplied in an 8-SOIC (7-lead) package rated -40°C ~ 125°C (TJ).
- Integrated 700V switch reduces external components in non-isolated designs.
- Multi-topology support (Buck, Boost, Buck-Boost, Flyback) for design flexibility.
- Comprehensive fault protection improves system safety.
- Soft start and frequency control aid startup and layout optimization.
- Compact 8-SOIC 7-lead package with wide -40°C ~ 125°C range.
Compact Non-Isolated Power Stages
The MP163BGS-33-P combines a 700V integrated switch with an 8-SOIC 7-lead package, enabling compact Buck, Boost, and Buck-Boost offline regulators.
IoT and Smart Devices
EN, soft start, and frequency control support controllable, efficient non-isolated power for connected devices.
Appliance Control Electronics
Comprehensive protection including current limiting, open loop, over load, short circuit, and over temperature ensures robust operation in appliance bias supplies.
Industrial Auxiliary Supplies
UVLO and a -40°C ~ 125°C junction range make it suitable for non-isolated flyback or buck auxiliary rails in industrial systems.
- Q: What topologies does the MP163BGS-33-P support?
- A: Boost, Buck, Buck-Boost, and Flyback in a non-isolated configuration.
- Q: Is the switch integrated?
- A: Yes, with a 700V breakdown rating.
- Q: What is the Vcc supply range?
- A: 5.3V ~ 6.5V.
- Q: What fault protections are provided?
- A: Current limiting, open loop, over load, over temperature, short circuit, and UVLO.
- Q: What control features does it include?
- A: EN, frequency control, and soft start.
- Q: What package and temperature range?
- A: 8-SOIC (0.154", 3.90mm) with 7 leads, rated -40°C ~ 125°C (TJ).
