Monolithic Power Systems Inc. MP163BGS-5-P
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $0.94 | $0.94 |
| 15+ | $0.91 | $13.65 |
| 25+ | $0.89 | $22.25 |
| 50+ | $0.84 | $42.00 |
| 100+ | $0.74 | $74.00 |
| N+ | $0.15 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Monolithic Power Systems Inc. |
| Product Series | MP |
| Packaging | Tape & Reel (TR) | |
| Output Isolation | Non-Isolated |
| Internal Switch(s) | Yes |
| Voltage - Breakdown | 700V |
| Topology | Boost, Buck, Buck-Boost, Flyback |
| Voltage - Start Up | - |
| Voltage - Supply (Vcc/Vdd) | 5.3V ~ 6.5V |
| Duty Cycle | - |
| Frequency - Switching | - |
| Power (Watts) | - |
| Fault Protection | Current Limiting, Open Loop, Over Load, Over Temperature, Short Circuit, UVLO |
| Control Features | EN, Frequency Control, Soft Start |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | 8-SOIC (0.154", 3.90mm Width), 7 Leads |
| Supplier Device Package | 8-SOIC-7B |
| ROHS |  |

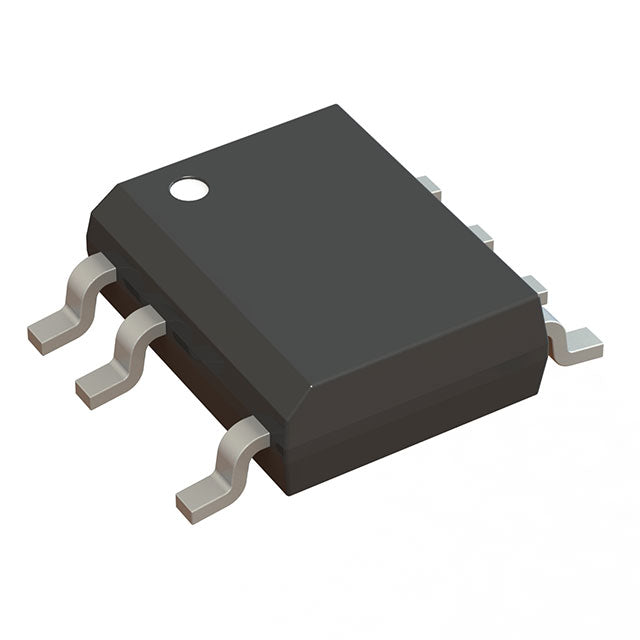

The MP163BGS-5-P from Monolithic Power Systems is a non-isolated offline regulator with a 700V integrated switch, supporting Boost, Buck, Buck-Boost, and Flyback topologies. It operates from a 5.3V ~ 6.5V Vcc supply and provides current limiting, open loop, over load, over temperature, short circuit, and UVLO protection. Control features include EN, frequency control, and soft start. Housed in an 8-SOIC (7-lead) package rated -40°C ~ 125°C (TJ).
- Compact 8-SOIC 7-lead package saves board space.
- Integrated 700V switch supports multiple non-isolated topologies.
- Broad fault protection set enhances reliability.
- Soft start and frequency control improve startup and design flexibility.
- Wide -40°C ~ 125°C junction range for varied environments.
Space-Constrained Offline Regulators
The 8-SOIC 7-lead package of the MP163BGS-5-P with an integrated 700V switch enables compact non-isolated Buck, Boost, and Buck-Boost supplies.
Home Automation Modules
Soft start, frequency control, and EN support efficient, controllable non-isolated power for smart home and IoT modules.
Appliance Auxiliary Power
Current limiting, over load, short circuit, and over temperature protection deliver robust fault handling for appliance bias rails.
Industrial Sensors and Controls
The -40°C ~ 125°C junction range and UVLO protection suit non-isolated flyback or buck stages in industrial sensor and control electronics.
- Q: What topologies does the MP163BGS-5-P support?
- A: Boost, Buck, Buck-Boost, and Flyback in a non-isolated configuration.
- Q: Does it include an integrated switch?
- A: Yes, with a 700V breakdown rating.
- Q: What is the Vcc supply range?
- A: 5.3V ~ 6.5V.
- Q: What protections are included?
- A: Current limiting, open loop, over load, over temperature, short circuit, and UVLO.
- Q: What control features does it offer?
- A: EN, frequency control, and soft start.
- Q: What package and temperature range?
- A: 8-SOIC (0.154", 3.90mm) with 7 leads, rated -40°C ~ 125°C (TJ).
