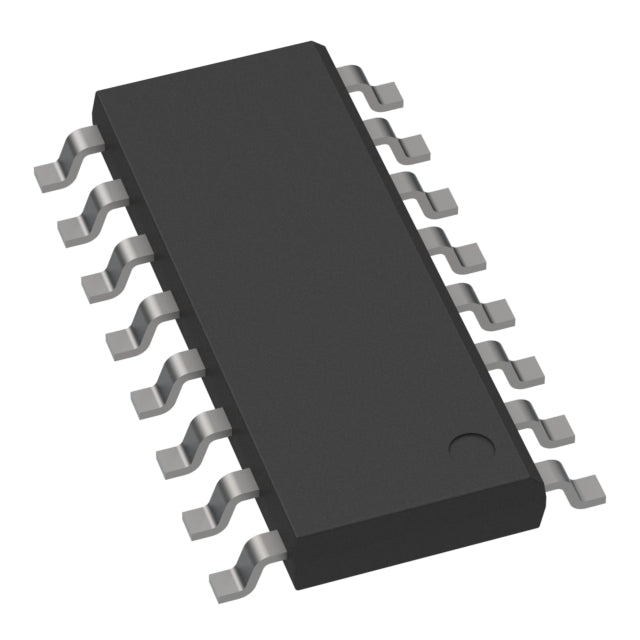

Monolithic Power Systems Inc. MP163BGSE-33-P
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $0.94 | $0.94 |
| 15+ | $0.91 | $13.65 |
| 25+ | $0.89 | $22.25 |
| 50+ | $0.84 | $42.00 |
| 100+ | $0.74 | $74.00 |
| N+ | $0.15 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Monolithic Power Systems Inc. |
| Product Series | MP |
| Packaging | Tape & Reel (TR) | |
| Output Isolation | Non-Isolated |
| Internal Switch(s) | Yes |
| Voltage - Breakdown | 700V |
| Topology | Boost, Buck, Buck-Boost, Flyback |
| Voltage - Start Up | - |
| Voltage - Supply (Vcc/Vdd) | 5.3V ~ 6.5V |
| Duty Cycle | - |
| Frequency - Switching | - |
| Power (Watts) | - |
| Fault Protection | Current Limiting, Open Loop, Over Load, Over Temperature, Short Circuit, UVLO |
| Control Features | EN, Frequency Control, Soft Start |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | 16-SOIC (0.154", 3.90mm Width) |
| Supplier Device Package | 16-SOIC |
| ROHS |  |
The MP163BGSE-33-P from Monolithic Power Systems is a non-isolated offline regulator with a 700V integrated switch, supporting Boost, Buck, Buck-Boost, and Flyback topologies. It operates from a 5.3V ~ 6.5V Vcc supply and includes current limiting, open loop, over load, over temperature, short circuit, and UVLO protection. Control features include EN, frequency control, and soft start. Supplied in a 16-SOIC package rated -40°C ~ 125°C (TJ).
- 700V integrated switch supports multiple non-isolated topologies in one device.
- Broad fault protection set including open loop, over load, short circuit, and UVLO.
- Soft start and frequency control improve startup behavior and design flexibility.
- EN pin enables simple on/off control in system power sequencing.
- 16-SOIC package with -40°C ~ 125°C range suits compact industrial designs.
Non-Isolated Offline Regulators
The MP163BGSE-33-P provides a 700V integrated switch for direct-coupled offline regulation, supporting Buck, Boost, and Buck-Boost topologies for compact non-isolated power rails.
Smart Home and IoT Power
With soft start, frequency control, and EN, this device enables efficient low-power supplies for connected devices requiring a 5.3V ~ 6.5V Vcc supply and robust fault handling.
Appliance Control Boards
Comprehensive protection including current limiting, open loop, over load, over temperature, short circuit, and UVLO makes it suitable for reliable non-isolated bias supplies in appliances.
Industrial Auxiliary Rails
The 16-SOIC package and -40°C ~ 125°C junction range support auxiliary power in industrial electronics where a non-isolated flyback or buck stage is preferred.
- Q: What topologies does the MP163BGSE-33-P support?
- A: It supports Boost, Buck, Buck-Boost, and Flyback topologies in a non-isolated configuration.
- Q: Does it have an integrated switch?
- A: Yes, the power switch is integrated on-chip.
- Q: What is the breakdown voltage?
- A: 700V.
- Q: What is the Vcc supply range?
- A: 5.3V ~ 6.5V.
- Q: What protections are included?
- A: Current limiting, open loop, over load, over temperature, short circuit, and UVLO.
- Q: What control features and package does it offer?
- A: EN, frequency control, and soft start in a 16-SOIC package rated -40°C ~ 125°C (TJ).
