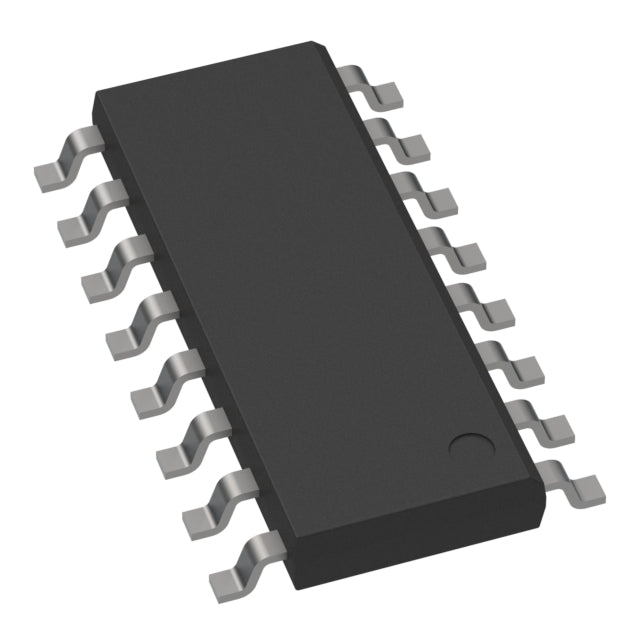

Monolithic Power Systems Inc. MP163CGSE-33-P
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $0.96 | $0.96 |
| 15+ | $0.93 | $13.95 |
| 25+ | $0.91 | $22.75 |
| 50+ | $0.86 | $43.00 |
| 100+ | $0.76 | $76.00 |
| N+ | $0.15 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Monolithic Power Systems Inc. |
| Product Series | MP |
| Packaging | Tape & Reel (TR) | |
| Output Isolation | Non-Isolated |
| Internal Switch(s) | Yes |
| Voltage - Breakdown | 700V |
| Topology | Boost, Buck, Buck-Boost, Flyback |
| Voltage - Start Up | - |
| Voltage - Supply (Vcc/Vdd) | 5.3V ~ 6.5V |
| Duty Cycle | - |
| Frequency - Switching | - |
| Power (Watts) | - |
| Fault Protection | Current Limiting, Open Loop, Over Load, Over Temperature, Short Circuit, UVLO |
| Control Features | EN, Frequency Control, Soft Start |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | 16-SOIC (0.154", 3.90mm Width) |
| Supplier Device Package | 16-SOIC |
| ROHS |  |
The MP163CGSE-33-P from Monolithic Power Systems is a non-isolated offline regulator with an integrated switch rated to 700V breakdown. It supports Boost, Buck, Buck-Boost, and Flyback topologies, operating from a 5.3V to 6.5V Vcc supply. Frequency control, soft start, and enable functions simplify design, while comprehensive fault protection covers current limiting, open loop, over load, over temperature, short circuit, and UVLO. Housed in a 16-SOIC package, it is rated for -40°C to 125°C junction temperatures.
- Integrated 700V switch reduces external component count and simplifies offline designs.
- Multi-topology flexibility (Boost, Buck, Buck-Boost, Flyback) supports diverse non-isolated applications.
- Comprehensive fault protection including current limiting, over load, over temperature, short circuit, and UVLO enhances reliability.
- Soft start and frequency control improve startup and switching behavior.
- Wide -40°C to 125°C junction temperature range suits demanding environments.
Non-Isolated Offline Power Supplies
With a 700V breakdown rating and integrated switch, the MP163CGSE-33-P suits compact non-isolated offline regulators where a wide input range must be stepped down efficiently.
Buck and Buck-Boost Designs
The device supports Buck and Buck-Boost topologies, making it adaptable to step-down and step-up/down rails in appliance and industrial control boards.
Flyback Auxiliary Rails
Flyback operation enables flexible multi-rail generation for auxiliary supplies, while soft start and frequency control help manage inrush and switching behavior.
Robust Protection Environments
Current limiting, over load, over temperature, short circuit, and UVLO protection support reliable operation in demanding -40°C to 125°C junction temperature conditions.
- Q: What switching topologies does the MP163CGSE-33-P support?
- A: It supports Boost, Buck, Buck-Boost, and Flyback topologies, giving designers flexibility across non-isolated offline applications.
- Q: Is the power switch integrated?
- A: Yes, the device integrates the switch, simplifying design and reducing external component count.
- Q: What is the breakdown voltage?
- A: The switch has a 700V breakdown voltage rating for robust offline operation.
- Q: What supply voltage does the IC require?
- A: It operates from a 5.3V to 6.5V Vcc supply.
- Q: What protections are included?
- A: Current limiting, open loop, over load, over temperature, short circuit, and UVLO protection.
