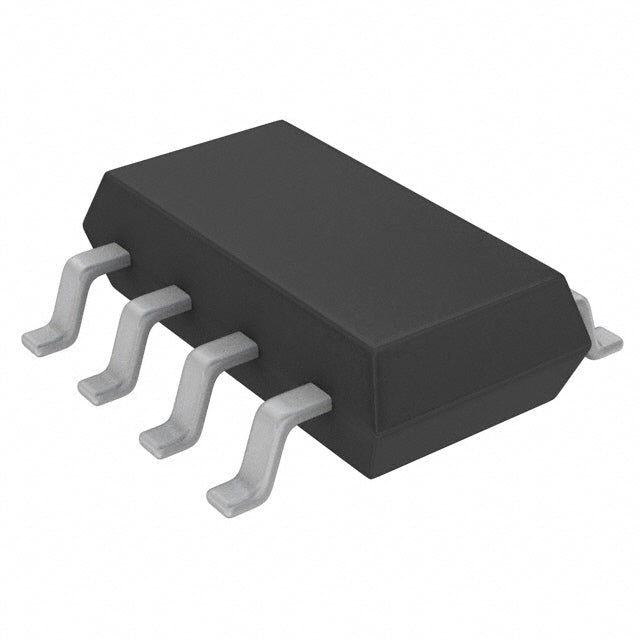

Monolithic Power Systems Inc. MP2161GJ-P
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $2.83 | $2.83 |
| 15+ | $2.74 | $41.10 |
| 25+ | $2.68 | $67.00 |
| 50+ | $2.53 | $126.50 |
| 100+ | $2.24 | $224.00 |
| N+ | $0.45 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Monolithic Power Systems Inc. |
| Product Series | |
| Packaging | Cut Tape (CT) | Tape & Reel (TR) |
| Function | Step-Down |
| Output Configuration | Positive |
| Topology | Buck |
| Output Type | Adjustable |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 2.5V |
| Voltage - Input (Max) | 6V |
| Voltage - Output (Min/Fixed) | 0.6V |
| Voltage - Output (Max) | 6V |
| Current - Output | 2A |
| Frequency - Switching | 1.5MHz |
| Synchronous Rectifier | Yes |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | SOT-23-8 Thin, TSOT-23-8 |
| Supplier Device Package | TSOT-23-8 |
| ROHS |  |
The Monolithic Power Systems MP2161GJ-P is a high-efficiency, synchronous Buck DC-DC converter designed for low-voltage applications. It operates from a 2.5V to 6V input and provides an adjustable output from 0.6V to 6V, with a maximum output current of 2A. The fixed 1.5MHz switching frequency enables the use of tiny external components, making it ideal for space-constrained designs. Available in a compact SOT-23-8 Thin package, this converter is perfect for portable electronics, wearables, and IoT devices where efficiency and small size are critical.
- High Efficiency: Synchronous rectification delivers up to 95% efficiency, extending battery life in portable devices.
- Small Solution Size: The 1.5MHz switching frequency allows for tiny inductors and capacitors, minimizing PCB area.
- Low Input Voltage (2.5V): Supports operation from single-cell Li-ion batteries down to near end-of-discharge voltage.
- High Output Current (2A): Suitable for powering application processors, FPGAs, and other power-hungry loads.
Portable Electronics
For smartphones and tablets, the MP2161's 2.5-6V input range is perfect for single-cell Li-ion batteries, efficiently stepping down to core voltages for application processors and memory.
Wearable Devices
In wearables, the small SOT-23-8 package and high 1.5MHz frequency minimize solution size, making it ideal for space-constrained designs like smartwatches and fitness trackers.
Solid-State Drives (SSDs)
SSDs require clean, efficient power for the controller and NAND flash. The MP2161 provides a compact, high-frequency solution for 3.3V and 1.8V rails.
IoT Modules
For IoT devices, this converter efficiently powers wireless SoCs and sensors from a Li-ion battery or USB supply, extending battery life with its high efficiency at light loads.
Set-Top Boxes
In consumer electronics like set-top boxes, the MP2161 steps down the 5V supply to various low-voltage rails, providing a reliable and compact power solution.
FPGA Core Supply
For small FPGAs, the 2A output current is sufficient for core logic, and the high frequency allows for a small, low-profile inductor, saving board space.
- Q: What type of converter is the MP2161GJ-P?
- A: It is a Buck (step-down) DC-DC converter.
- Q: What is the input voltage range?
- A: The input voltage range is from 2.5V to 6V.
- Q: What is the output voltage range?
- A: The output voltage is adjustable from 0.6V up to 6V.
- Q: What is the maximum output current?
- A: It can deliver up to 2A of output current.
- Q: What is the switching frequency?
- A: The switching frequency is fixed at 1.5MHz.
- Q: What package is available?
- A: It is available in SOT-23-8 Thin and TSOT-23-8 packages.
