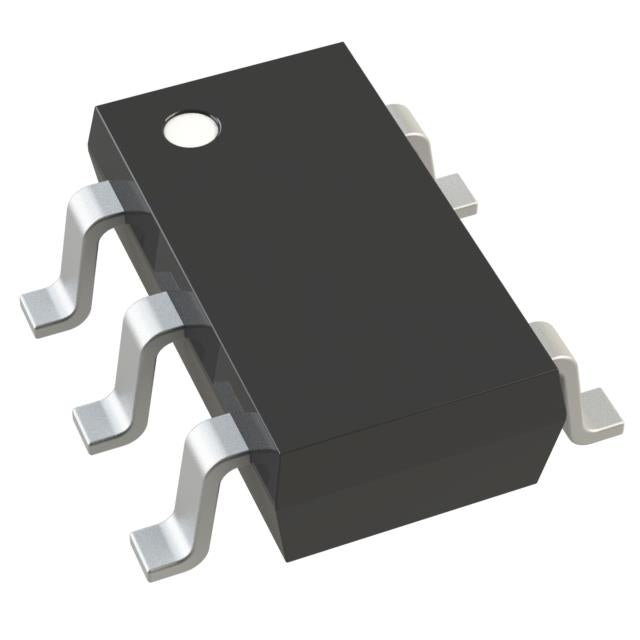

Monolithic Power Systems Inc. MP8801DJ-2.5-LF-Z
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $1.11 | $1.11 |
| 15+ | $1.08 | $16.20 |
| 25+ | $1.05 | $26.25 |
| 50+ | $0.99 | $49.50 |
| 100+ | $0.88 | $88.00 |
| N+ | $0.18 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Monolithic Power Systems Inc. |
| Product Series | |
| Packaging | Factory | Cut Tape (CT) |
| Output Configuration | Positive |
| Output Type | Adjustable (Fixed) |
| Number of Regulators | 1 |
| Voltage - Input (Max) | 6.5V |
| Voltage - Output (Min/Fixed) | 1.25V (2.5V) |
| Voltage - Output (Max) | 5V |
| Voltage Dropout (Max) | 0.125V @ 150mA (Typ), - |
| Current - Output | 150mA |
| Current - Quiescent (Iq) | 150 µA |
| Current - Supply (Max) | - |
| PSRR | 70db ~ 30dB (1kHz ~ 1MHz) |
| Control Features | Enable |
| Protection Features | Over Temperature |
| Operating Temperature | -40°C ~ 85°C |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | SOT-23-5 Thin, TSOT-23-5 |
| Supplier Device Package | TSOT-23-5 |
| ROHS |  |
The MP8801DJ-2.5-LF-Z is a fixed 5V output LDO linear regulator from Monolithic Power Systems, delivering up to 150mA with a typical dropout of just 0.125V. Its low 150 µA quiescent current and high PSRR of 70dB at 1kHz make it suitable for noise-sensitive portable and industrial applications. Housed in a compact TSOT-23-5 package, this regulator offers a practical solution for space-constrained designs requiring stable voltage conversion.
- Extended Battery Life: The 150 µA quiescent current minimizes standby power draw, ideal for battery-operated devices.
- Clean Output: 70dB PSRR at 1kHz effectively rejects input noise, ensuring stable operation for analog and RF circuits.
- High Efficiency at Low Dropout: 0.125V dropout at 150mA reduces power dissipation, improving thermal performance in compact layouts.
- Compact Footprint: TSOT-23-5 package saves PCB space without compromising output current capability.
Battery-Powered IoT Sensors
The low 150 µA quiescent current and 0.125V dropout at 150mA make it ideal for extending battery life in wireless sensor nodes, where the regulator maintains a stable 5V rail as the battery voltage declines.
Portable Medical Devices
With a PSRR of 70dB at 1kHz, this LDO effectively filters switching noise from upstream DC-DC converters, ensuring clean power for sensitive analog front-ends in glucose monitors and pulse oximeters.
Wearable Electronics
The compact TSOT-23-5 package and 150mA capability suit space-constrained wearables like smartwatches, providing a regulated 5V supply for display drivers and haptic actuators.
Industrial Sensor Interfaces
The wide input range down to 1.25V allows operation from multi-cell battery stacks or energy harvesting circuits, delivering a stable 5V reference for 4-20mA loop transmitters.
RF Transceiver Modules
The 70dB PSRR at 1kHz and 30dB at 1MHz suppresses power supply noise that could otherwise degrade RF signal integrity in Bluetooth and Zigbee modules.
Automotive Infotainment Backup
For always-on backup systems, the low dropout ensures the 5V rail remains regulated even during cold-crank conditions where the input voltage dips significantly.
- Q: What is the output voltage of the MP8801DJ-2.5-LF-Z?
- A: The fixed output voltage is 5V, with a minimum input voltage of 2.5V.
- Q: What is the maximum output current?
- A: The maximum output current is 150mA.
- Q: What is the input voltage range?
- A: The input voltage range starts at 1.25V (2.5V for the 5V output version).
- Q: What is the dropout voltage?
- A: The typical dropout voltage is 0.125V at 150mA load.
- Q: What is the quiescent current?
- A: The quiescent current is 150 µA.
- Q: What package is available?
- A: The device comes in a TSOT-23-5 package.
