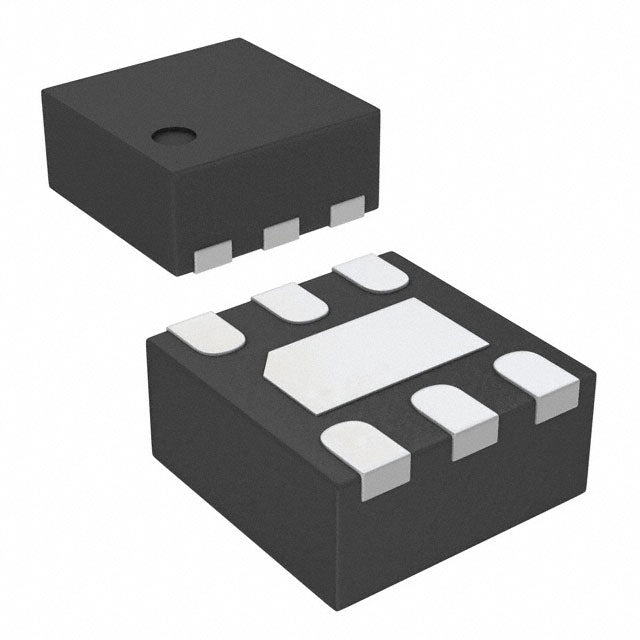

Monolithic Power Systems Inc. MPQ2013AGG-33-AEC1-P
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $2.89 | $2.89 |
| 15+ | $2.80 | $42.00 |
| 25+ | $2.74 | $68.50 |
| 50+ | $2.58 | $129.00 |
| 100+ | $2.28 | $228.00 |
| N+ | $0.46 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Monolithic Power Systems Inc. |
| Product Series | |
| Packaging | Cut Tape (CT) | Tape & Reel (TR) |
| Output Configuration | Positive |
| Output Type | Fixed |
| Number of Regulators | 1 |
| Voltage - Input (Max) | 40V |
| Voltage - Output (Min/Fixed) | 3.3V |
| Voltage - Output (Max) | - |
| Voltage Dropout (Max) | 1.1V @ 150mA |
| Current - Output | 150mA |
| Current - Quiescent (Iq) | 50 µA |
| Current - Supply (Max) | - |
| PSRR | 58dB ~ 41dB (100Hz ~ 1kHz) |
| Control Features | Enable |
| Protection Features | Over Current, Over Temperature |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | 6-VDFN Exposed Pad |
| Supplier Device Package | 6-QFN (2x2) |
| ROHS |  |
The MPQ2013AGG-33-AEC1-P from Monolithic Power Systems is an automotive-grade low-dropout regulator providing a fixed 3.3V output at up to 150mA. With an ultra-low 50µA quiescent current and AEC-Q1 qualification, it's designed for demanding automotive and industrial applications. The compact 6-QFN package ensures reliable performance in harsh environments.
- Automotive Qualified: AEC-Q1 certified for reliable operation in vehicle environments.
- Ultra-Low Quiescent Current: 50µA minimizes battery drain in always-on automotive systems.
- Compact Size: 6-QFN (2x2) package saves space in dense ECU layouts.
- Stable 3.3V Output: Fixed voltage with 1.1V dropout ensures consistent performance.
Automotive ECUs
AEC-Q1 qualified, this LDO provides a stable 3.3V rail for engine control units and body electronics, with 50µA quiescent current for always-on modules.
Battery Management Systems
For BMS in electric vehicles, it powers monitoring ICs with low dropout and high reliability, ensuring accurate cell voltage measurement.
Industrial IoT Gateways
The 3.3V output and 150mA support sensors and communication modules in industrial gateways, with low quiescent current for energy efficiency.
Portable Automotive Tools
Ideal for handheld diagnostic tools, providing regulated 3.3V for microcontrollers and displays while withstanding automotive voltage transients.
Telematics Units
Powers GPS and cellular modules in vehicle tracking systems, with PSRR of 58dB at 100Hz filtering alternator noise.
Safety Systems
For airbag and ADAS sensors, this AEC-Q1 LDO ensures reliable 3.3V power in safety-critical applications, meeting stringent automotive standards.
- Q: What is the output voltage?
- A: The fixed output voltage is 3.3V.
- Q: What is the maximum output current?
- A: It can deliver up to 150mA.
- Q: What is the input voltage range?
- A: The input voltage is 3.3V (typical).
- Q: What is the dropout voltage?
- A: Dropout is 1.1V at 150mA.
- Q: What is the quiescent current?
- A: Quiescent current is 50 µA.
- Q: What package is available?
- A: It comes in a 6-QFN (2x2) package.
