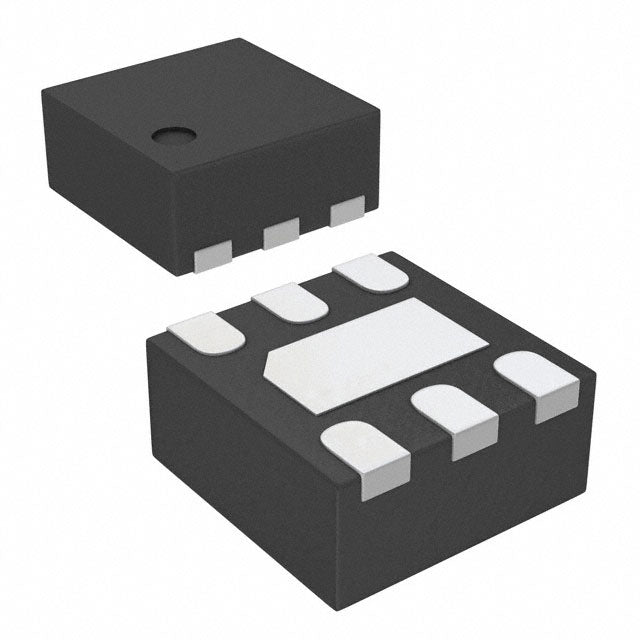

Monolithic Power Systems Inc. MPQ2013AGG-33-P
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $2.69 | $2.69 |
| 15+ | $2.60 | $39.00 |
| 25+ | $2.55 | $63.75 |
| 50+ | $2.41 | $120.50 |
| 100+ | $2.12 | $212.00 |
| N+ | $0.42 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Monolithic Power Systems Inc. |
| Product Series | |
| Packaging | Cut Tape (CT) | Tape & Reel (TR) |
| Output Configuration | Positive |
| Output Type | Fixed |
| Number of Regulators | 1 |
| Voltage - Input (Max) | 40V |
| Voltage - Output (Min/Fixed) | 3.3V |
| Voltage - Output (Max) | - |
| Voltage Dropout (Max) | 1.1V @ 150mA |
| Current - Output | 150mA |
| Current - Quiescent (Iq) | 50 µA |
| Current - Supply (Max) | - |
| PSRR | 58dB ~ 41dB (100Hz ~ 1kHz) |
| Control Features | Enable |
| Protection Features | Over Current, Over Temperature |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | 6-VDFN Exposed Pad |
| Supplier Device Package | 6-QFN (2x2) |
| ROHS |  |
The Monolithic Power Systems MPQ2013AGG-33-P is a 150mA low dropout regulator with a fixed 3.3V output. Its 2x2mm QFN package is ideal for space-constrained designs, while 50 µA quiescent current supports battery-powered applications. With 1.1V dropout at full load and PSRR up to 58dB, it delivers reliable, clean power for portable and industrial electronics.
- Ultra-Compact: 2x2mm QFN package minimizes board space for miniaturized designs.
- Low Power: 50 µA quiescent current extends battery life in portable devices.
- Noise Rejection: 58dB PSRR at 100Hz filters low-frequency ripple from power sources.
- Thermal Protection: Built-in shutdown safeguards the regulator and load in fault conditions.
Compact IoT Modules
The 2x2mm QFN package saves PCB space in smart sensors and trackers, while 150mA handles MCU and radio loads.
Battery-Powered Wearables
50 µA quiescent current and 3.3V output suit fitness bands and smartwatches, balancing performance and battery life.
Portable Audio Devices
PSRR of 58dB at 100Hz reduces hum from battery or charger noise, improving audio clarity in DACs and amps.
Industrial Wireless Nodes
Stable 3.3V rail for industrial IoT transmitters, with thermal shutdown for reliable operation in harsh environments.
Medical Patch Sensors
Small footprint and low power consumption enable disposable health monitors with long shelf life.
Reference Voltage Sources
Provides a clean 3.3V reference for ADC circuits, with PSRR up to 58dB minimizing supply-induced errors.
- Q: What is the output voltage?
- A: The fixed output is 3.3V.
- Q: What is the maximum output current?
- A: It can deliver up to 150mA.
- Q: What is the input voltage range?
- A: The input voltage range is not specified in the provided data; refer to the datasheet.
- Q: What is the dropout voltage?
- A: Dropout is 1.1V at 150mA full load.
- Q: What is the quiescent current?
- A: Quiescent current is 50 µA.
- Q: What package is available?
- A: It comes in a compact 6-QFN (2x2mm) package.
MPQ2013AGG-33-P.pdf
- Q: What is the output voltage?
- A: The fixed output is 3.3V.
- Q: What is the maximum output current?
- A: It can deliver up to 150mA.
- Q: What is the input voltage range?
- A: The input voltage range is not specified in the provided data; refer to the datasheet.
- Q: What is the dropout voltage?
- A: Dropout is 1.1V at 150mA full load.
- Q: What is the quiescent current?
- A: Quiescent current is 50 µA.
- Q: What package is available?
- A: It comes in a compact 6-QFN (2x2mm) package.
