Monolithic Power Systems Inc. MPQ2013AGG-33-Z
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $2.71 | $2.71 |
| 15+ | $0.63 | $9.45 |
| 25+ | $0.61 | $15.25 |
| 50+ | $0.58 | $29.00 |
| 100+ | $0.51 | $51.00 |
| N+ | $0.10 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Monolithic Power Systems Inc. |
| Product Series | |
| Packaging | Tape & Reel (TR) | |
| Output Configuration | Active |
| Output Type | Positive |
| Number of Regulators | Fixed |
| Voltage - Input (Max) | 40V |
| Voltage - Output (Min/Fixed) | 3.3V |
| Voltage - Output (Max) | - |
| Voltage Dropout (Max) | 1.1V @ 150mA |
| Current - Output | 150mA |
| Current - Quiescent (Iq) | 50 μA |
| Current - Supply (Max) | - |
| PSRR | 58dB ~ 41dB (100Hz ~ 1kHz) |
| Control Features | Enable |
| Protection Features | Over Current, Over Temperature |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |

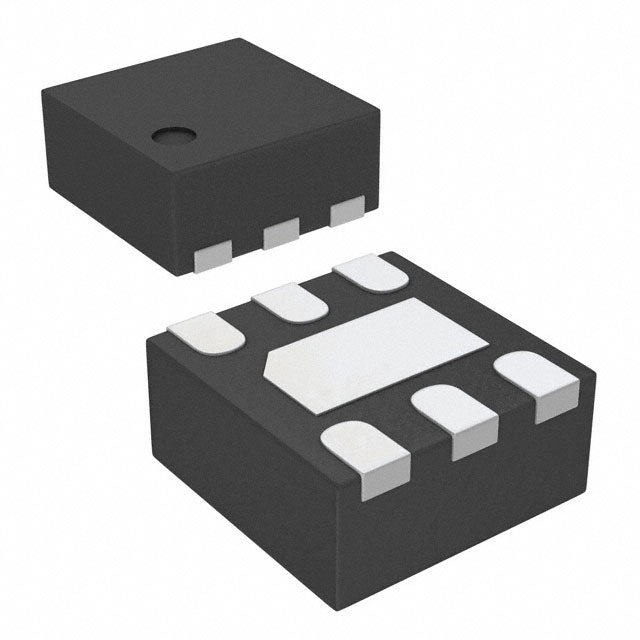

| Package / Case | 6-VDFN Exposed Pad |
| Supplier Device Package | 6-QFN (2x2) |
| ROHS |  |
The MPQ2013AGG-33-Z from Monolithic Power Systems is a fixed 3.3V low-dropout linear regulator designed for ultra-low-power applications. It delivers up to 150mA of output current with a dropout voltage of just 1.1V. The regulator consumes only 50 μA of quiescent current, making it ideal for battery-powered and always-on devices. With a compact 6-QFN (2x2) package and good PSRR performance, it provides a reliable and efficient power solution for space-constrained designs.
- Ultra-Low Quiescent Current: 50 μA extends battery life in portable and standby applications.
- Compact 6-QFN Package: 2x2mm footprint saves valuable PCB space.
- Fixed 3.3V Output: Simplifies design and reduces external component count.
- Good PSRR: 58dB at 100Hz ensures clean output for noise-sensitive circuits.
Battery-Powered IoT Sensors
The ultra-low 50 μA quiescent current significantly extends battery life in always-on sensor nodes.
Wearable Devices
The tiny 6-QFN (2x2) package and low power consumption make it perfect for smartwatches and fitness trackers.
Portable Audio Players
Good PSRR (58dB at 100Hz) helps reduce power supply noise in audio circuits, improving sound quality.
Low-Power Microcontrollers
Provides a stable 3.3V rail for MCUs in energy-harvesting or battery-operated systems.
Wireless Communication Modules
Stable output for Bluetooth Low Energy (BLE) and Zigbee modules, ensuring reliable wireless performance.
Industrial Sensors
Compact size and low dropout make it suitable for 4-20mA loop-powered transmitters and industrial monitoring equipment.
- Q: What is the output voltage of the MPQ2013AGG-33-Z?
- A: It provides a fixed 3.3V output.
- Q: What is the maximum output current?
- A: The maximum output current is 150mA.
- Q: What is the dropout voltage?
- A: The dropout voltage is 1.1V at 150mA load.
- Q: What is the quiescent current?
- A: The quiescent current is only 50 μA.
- Q: What is the PSRR performance?
- A: PSRR is 58dB at 100Hz and 41dB at 1kHz.
- Q: What package is available?
- A: It comes in a compact 6-QFN (2x2) package.
