Monolithic Power Systems Inc. MPQ2013AGQ-25-AEC1-P
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $4.50 | $4.50 |
| 15+ | $1.03 | $15.45 |
| 25+ | $1.01 | $25.25 |
| 50+ | $0.95 | $47.50 |
| 100+ | $0.84 | $84.00 |
| N+ | $0.17 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Monolithic Power Systems Inc. |
| Product Series | |
| Packaging | Tape & Reel (TR) | |
| Output Configuration | Active |
| Output Type | Positive |
| Number of Regulators | Fixed |
| Voltage - Input (Max) | 40V |
| Voltage - Output (Min/Fixed) | 2.5V |
| Voltage - Output (Max) | - |
| Voltage Dropout (Max) | 1.3V @ 150mA |
| Current - Output | 150mA |
| Current - Quiescent (Iq) | 10 μA |
| Current - Supply (Max) | 50 μA |
| PSRR | 58dB ~ 41dB (100Hz ~ 1kHz) |
| Control Features | Enable |
| Protection Features | Over Current, Over Temperature |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |

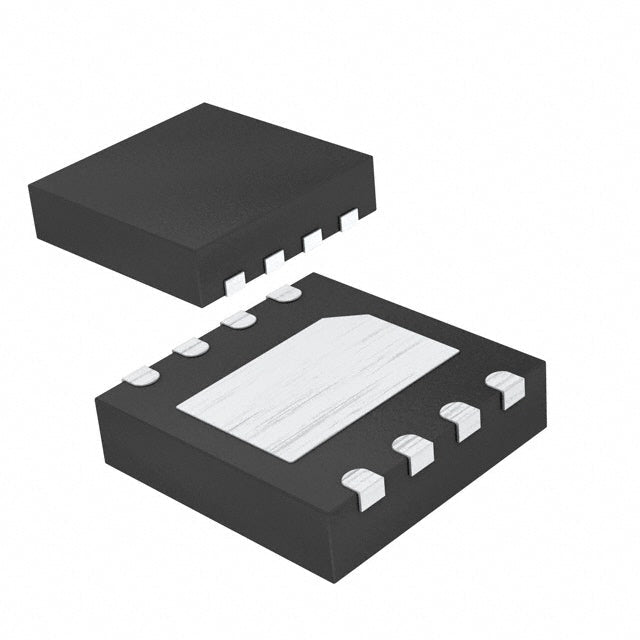

| Package / Case | 8-VDFN Exposed Pad |
| Supplier Device Package | 8-QFN (3x3) |
| ROHS |  |
The MPQ2013A from Monolithic Power Systems is an automotive-grade (AEC-Q1) fixed 2.5V LDO regulator. It delivers 150mA with a low quiescent current of 10µA, making it ideal for battery-powered automotive applications. The device features excellent PSRR of 58dB at 100Hz, ensuring clean power in noisy environments. Housed in an 8-QFN (3x3) package, it offers a compact, reliable solution.
- Automotive Qualified: AEC-Q1 certified for reliable operation in harsh automotive environments.
- Low Power Consumption: 10µA quiescent current minimizes battery drain in always-on systems.
- Excellent Noise Rejection: 58dB PSRR at 100Hz filters low-frequency noise from alternators and switching regulators.
- Compact Package: 3x3 QFN saves PCB space in space-constrained designs.
Automotive Sensor Power
AEC-Q1 qualified, this LDO provides clean 2.5V power for automotive sensors, with 58dB PSRR at 100Hz filtering alternator noise.
Battery-Powered ECUs
The 10µA quiescent current is ideal for always-on electronic control units in vehicles, reducing battery drain when the engine is off.
Industrial IoT Gateways
Provides stable 2.5V rail for low-power microcontrollers in industrial IoT gateways, with a compact 3x3 QFN package for space savings.
Portable Diagnostic Tools
Low dropout and high PSRR ensure reliable operation in handheld automotive diagnostic equipment powered by batteries.
Telematics Systems
Powers GPS and communication modules in vehicle telematics, ensuring stable operation across temperature extremes.
- Q: What is the output voltage of the MPQ2013A?
- A: This is a fixed output LDO with a 2.5V output.
- Q: What is the maximum output current?
- A: It can provide up to 150mA of output current.
- Q: What is the input voltage range?
- A: The input voltage range is up to 2.5V.
- Q: What is the dropout voltage?
- A: Dropout voltage is 1.3V at 150mA load.
- Q: What is the quiescent current?
- A: The quiescent current is 10 µA.
- Q: What package is available?
- A: It is available in an 8-QFN (3x3) package.
