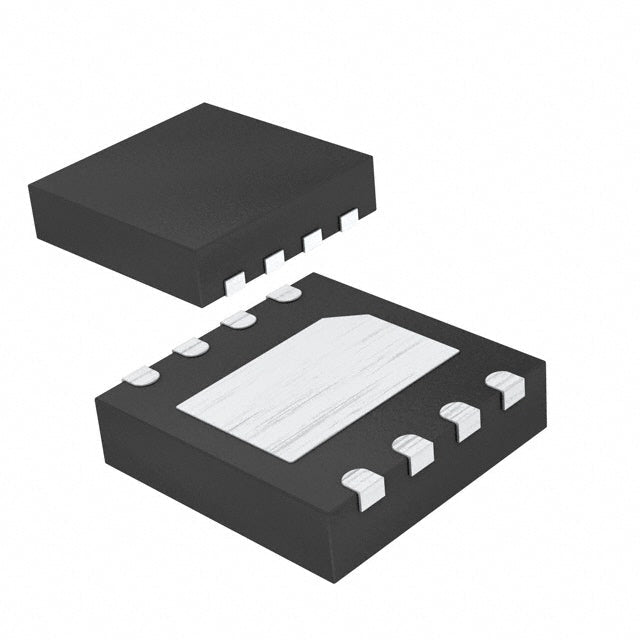

Monolithic Power Systems Inc. MPQ2013AGQ-5-AEC1-Z
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $2.54 | $2.54 |
| 15+ | $2.46 | $36.90 |
| 25+ | $2.40 | $60.00 |
| 50+ | $2.27 | $113.50 |
| 100+ | $2.00 | $200.00 |
| N+ | $0.40 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Monolithic Power Systems Inc. |
| Product Series | |
| Packaging | Cut Tape (CT) | Tape & Reel (TR) |
| Output Configuration | Positive |
| Output Type | Fixed |
| Number of Regulators | 1 |
| Voltage - Input (Max) | 40V |
| Voltage - Output (Min/Fixed) | 5V |
| Voltage - Output (Max) | - |
| Voltage Dropout (Max) | 1.1V @ 150mA |
| Current - Output | 150mA |
| Current - Quiescent (Iq) | 10 µA |
| Current - Supply (Max) | 50 µA |
| PSRR | 58dB ~ 41dB (100Hz ~ 1kHz) |
| Control Features | Enable |
| Protection Features | Over Current, Over Temperature |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Grade | Automotive |
| Qualification | AEC-Q100 |
| Mounting Type | Surface Mount |
| Package / Case | 8-VDFN Exposed Pad |
| Supplier Device Package | 8-QFN (3x3) |
| ROHS |  |
The MPQ2013AGQ-5-AEC1-Z from Monolithic Power Systems is an automotive-grade (AEC-Q100) fixed 5V LDO linear regulator. It delivers up to 150mA with a dropout voltage of 1.1V. Its standout feature is an ultra-low quiescent current of just 10µA, making it ideal for battery-powered and always-on automotive applications. Housed in a compact 8-QFN (3x3mm) package, it offers a reliable, low-power solution for demanding environments.
- Ultra-Low Quiescent Current (10µA): Dramatically extends battery life in always-on and standby applications.
- AEC-Q100 Qualified: Meets stringent automotive quality and reliability standards.
- Fixed 5V Output: Simplifies design by eliminating external resistor dividers.
- Compact 8-QFN Package: Saves board space in space-constrained automotive and IoT designs.
Automotive Always-On Systems
With only 10µA quiescent current, the MPQ2013A is perfect for automotive systems that must remain active when the vehicle is off, such as security systems and remote keyless entry.
Battery-Powered IoT Sensors
Its ultra-low quiescent current extends battery life in wireless sensors and beacons, enabling years of operation on a single coin cell.
Automotive Infotainment Backup
Provides a stable 5V supply for backup cameras and telematics units, ensuring reliable operation during engine start-stop cycles.
Portable Medical Monitors
The low power consumption and small 8-QFN package make it suitable for wearable health monitors and glucose meters.
Industrial Low-Power Controllers
Power standby circuits and real-time clocks in industrial equipment, maintaining critical functions with minimal power draw.
Smart Home Devices
Ideal for smart thermostats and door locks that require a low-power, always-on 5V rail for wireless connectivity.
- Q: What is the output voltage of the MPQ2013AGQ-5-AEC1-Z?
- A: This is a fixed output LDO with a 5V output voltage.
- Q: What is the maximum output current?
- A: The MPQ2013A can deliver up to 150mA of output current.
- Q: What is the input voltage range?
- A: The input voltage range is from 5V up to the maximum rating; the dropout voltage is 1.1V at 150mA.
- Q: What is the dropout voltage?
- A: The dropout voltage is 1.1V at 150mA, which is suitable for applications with moderate headroom.
- Q: What is the quiescent current?
- A: The quiescent current is extremely low at 10µA, making it ideal for battery-powered and always-on applications.
- Q: What is the PSRR performance?
- A: It offers PSRR of 58dB at 100Hz and 41dB at 1kHz, providing good noise rejection.
