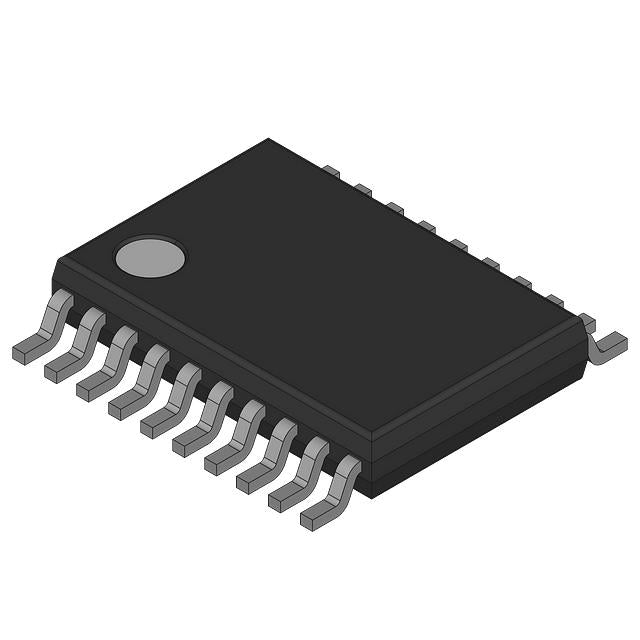

Texas Instruments MSP430F2111IPW
Regular price
$2.45
Regular price
$2.58
Sale price
$2.45
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $2.45 | $2.45 |
| 15+ | $2.37 | $35.55 |
| 25+ | $2.32 | $58.00 |
| 50+ | $2.19 | $109.50 |
| 100+ | $1.94 | $194.00 |
| N+ | $0.39 | Price Inquiry |
Shipping calculated at checkout.
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Texas Instruments |
| Product Series | MSP430F2xx |
| Packaging | Marketplace | Bulk |
| Core Processor | MSP430 CPU16 |
| Core Size | 16-Bit |
| Speed | 16MHz |
| Connectivity | - |
| Peripherals | Brown-out Detect/Reset, POR, PWM, WDT |
| Number of I/O | 16 |
| Program Memory Size | 2KB (2K x 8 + 256B) |
| Program Memory Type | FLASH |
| EEPROM Size | - |
| RAM Size | 128 x 8 |
| Voltage - Supply (Vcc/Vdd) | 1.8V ~ 3.6V |
| Data Converters | Slope A/D |
| Oscillator Type | Internal |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Supplier Device Package | 20-TSSOP |
| Package / Case | 20-TSSOP (0.173", 4.40mm Width) |
| ROHS |  |
The MSP430F2111IPW from Texas Instruments is a 16-bit ultra-low-power MCU with 2KB flash and 128B RAM. Operating at 16MHz with 1.8V-3.6V supply, it fits in a 20-TSSOP package. Integrated BOR, POR, PWM, and WDT make it a robust choice for battery-operated sensing and control.
- Ultra-low power 16-bit core – ideal for energy-harvesting designs.
- Small 20-TSSOP – saves PCB area in portable devices.
- Integrated BOR/POR – improves system reliability.
- 16MHz speed – sufficient for real-time control loops.
Sensor Signal Conditioning
16-bit core and 128B RAM handle precision ADC data in industrial transmitters.
Battery-Powered Remote Controls
1.8V operation and WDT extend battery life in consumer remotes.
Medical Wearables
Low pin count and small TSSOP package fit in patch devices.
Automotive Aftermarket
PWM outputs drive LED indicators in dashboards.
Smart Agriculture
POR and brown-out reset protect against unstable field power.
Security Systems
Deterministic interrupt latency for reliable motion detection.
- Q: What is the core type?
- A: 16-bit MSP430 CPU16 at 16MHz.
- Q: How much flash memory?
- A: 2KB with 256B additional for boot code.
- Q: What is the package?
- A: 20-TSSOP, compact for space-constrained designs.
- Q: Does it have brown-out protection?
- A: Yes, BOR and POR ensure safe power-up/down.
Base Product Number ：
MSP430F2111IPW
