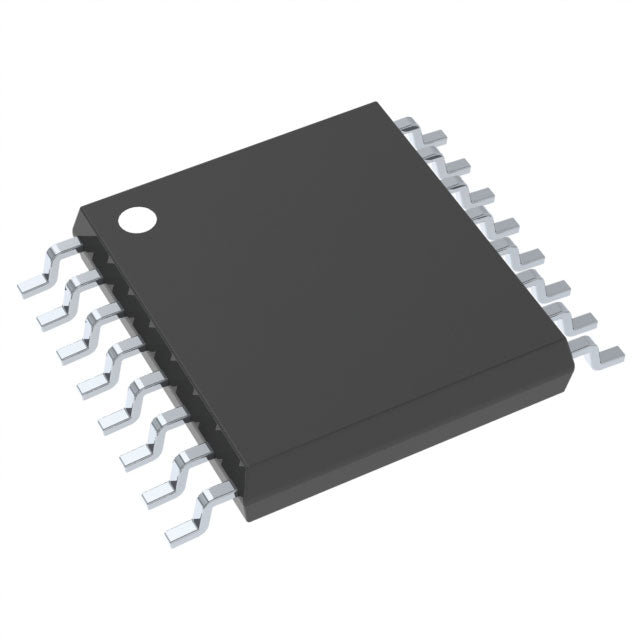

Texas Instruments MSP430FR2111IPW16R
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $1.07 | $1.07 |
| 15+ | $1.04 | $15.60 |
| 25+ | $1.02 | $25.50 |
| 50+ | $0.96 | $48.00 |
| 100+ | $0.85 | $85.00 |
| N+ | $0.17 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Texas Instruments |
| Product Series | MSP430™ FRAM |
| Packaging | Cut Tape (CT) | Tape & Reel (TR) |
| Core Processor | MSP430 CPU16 |
| Core Size | 16-Bit |
| Speed | 16MHz |
| Connectivity | I2C, SCI, SPI, UART/USART |
| Peripherals | Brown-out Detect/Reset, POR, PWM, WDT |
| Number of I/O | 12 |
| Program Memory Size | 3.75KB (3.75K x 8) |
| Program Memory Type | FRAM |
| EEPROM Size | - |
| RAM Size | 1K x 8 |
| Voltage - Supply (Vcc/Vdd) | 1.8V ~ 3.6V |
| Data Converters | A/D 8x10b |
| Oscillator Type | Internal |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Grade | - |
| Qualification AEC | - |
| Mounting Type | Surface Mount |
| Supplier Device Package | 16-TSSOP |
| Package / Case | 16-TSSOP (0.173", 4.40mm Width) |
| ROHS |  |
The Texas Instruments MSP430FR2111IPW16R is an ultra-low-power 16-bit MCU featuring a 16MHz MSP430 CPU16 core. It integrates 3.75KB of FRAM and 1KB of SRAM, operating from 1.8V to 3.6V. Housed in a compact 16-TSSOP package, it includes PWM, WDT, POR, and brown-out detection for robust embedded control.
- Ultra-low power with FRAM: Enables instant writes and low standby current for battery life.
- Wide voltage range (1.8V-3.6V): Simplifies power design with single-cell batteries.
- 16MHz performance: Handles real-time tasks efficiently.
- Integrated watchdog and brown-out reset: Improves system reliability.
Battery-Powered IoT Sensors
The 1.8V minimum supply and ultra-low-power FRAM enable long-life operation in wireless environmental monitors.
Portable Medical Devices
With 16MHz speed and 3.75KB FRAM, it handles real-time vital-sign logging in compact wearables.
Industrial Process Controllers
PWM outputs and WDT ensure reliable control loops in 4-20mA transmitters.
Smart Home Automation
Low-voltage operation and small TSSOP footprint fit into smart switches and thermostat nodes.
Energy Harvesting Systems
Its 1.8V operation pairs well with solar or thermal harvesters for self-powered sensing.
Automotive Body Electronics
With -40°C to 85°C range, it suits interior lighting and seat control modules.
- Q: What is the operating voltage range of the MSP430FR2111IPW16R?
- A: It operates from 1.8V to 3.6V, ideal for battery-powered designs.
- Q: What is the core architecture?
- A: It uses the ultra-low-power MSP430 CPU16 with a 16-bit RISC core at up to 16MHz.
- Q: How much FRAM and RAM does it include?
- A: It has 3.75KB of FRAM and 1KB of SRAM for data storage.
- Q: What package is available?
- A: It comes in a 16-pin TSSOP (4.40mm width) package.
- Q: Does it support PWM?
- A: Yes, it includes PWM timers along with WDT, POR, and brown-out detection.
