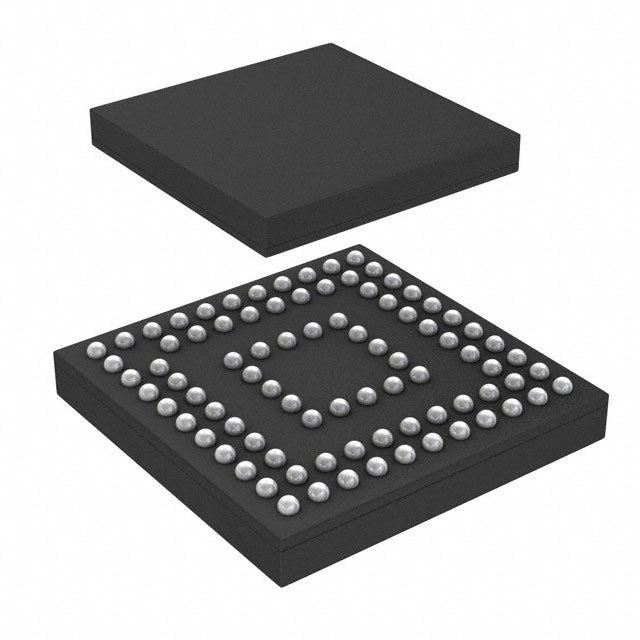

Texas Instruments MSP430FR59941IZVWR
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $7.36 | $7.36 |
| 15+ | $7.13 | $106.95 |
| 25+ | $6.98 | $174.50 |
| 50+ | $6.59 | $329.50 |
| 100+ | $5.81 | $581.00 |
| N+ | $1.16 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Texas Instruments |
| Product Series | MSP430™ FRAM |
| Packaging | Cut Tape (CT) | NULL |
| Core Processor | MSP430 CPUXV2 |
| Core Size | 16-Bit |
| Speed | 16MHz |
| Connectivity | I2C, IrDA, SPI, UART/USART |
| Peripherals | Brown-out Detect/Reset, DMA, POR, PWM, WDT |
| Number of I/O | 68 |
| Program Memory Size | 256KB (256K x 8) |
| Program Memory Type | FRAM |
| EEPROM Size | - |
| RAM Size | 8K x 8 |
| Voltage - Supply (Vcc/Vdd) | 1.8V ~ 3.6V |
| Data Converters | A/D 20x12b |
| Oscillator Type | External, Internal |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Grade | - |
| Qualification AEC | - |
| Mounting Type | Surface Mount |
| Supplier Device Package | 87-NFBGA (6x6) |
| Package / Case | 87-VFBGA |
| ROHS |  |
The MSP430FR59941IZVWR from Texas Instruments is a 16-bit ultra-low-power MCU featuring the MSP430 CPUXV2 core. It operates at 16MHz with 256KB FRAM and 8KB RAM. The 87-VFBGA package includes DMA, PWM, and robust reset features, ideal for battery-powered and energy-harvesting applications.
- Ultra-low power consumption: Extends battery life in portable devices.
- 256KB FRAM: Combines speed of RAM with non-volatility of flash, enabling instant data logging.
- Compact VFBGA package: Saves PCB space for miniaturized designs.
- 16MHz performance: Sufficient for real-time sensor processing.
Battery-Powered Sensors
1.8V-3.6V operation and low-power FRAM enable years of operation from coin cells.
Wearable Health Monitors
16MHz speed and DMA support continuous ECG/EEG signal processing with minimal power draw.
Smart Meters
FRAM provides instant write capability for accurate metering data logging.
Industrial Sensing
Robust reset features and -40°C to 85°C range ensure reliable operation in harsh environments.
Portable Instrumentation
VFBGA package allows miniaturization of handheld multimeters and data loggers.
Energy Harvesting Systems
Ultra-low power consumption enables operation from solar or thermal harvesters.
- Q: What is the core architecture?
- A: MSP430 CPUXV2, a 16-bit RISC core optimized for low power.
- Q: What is the maximum speed?
- A: 16MHz, balancing performance and energy efficiency.
- Q: What is the package?
- A: 87-VFBGA, a compact ball-grid array for space-constrained designs.
- Q: Does it have FRAM?
- A: Yes, it features 256KB FRAM, which is fast and low-power.
