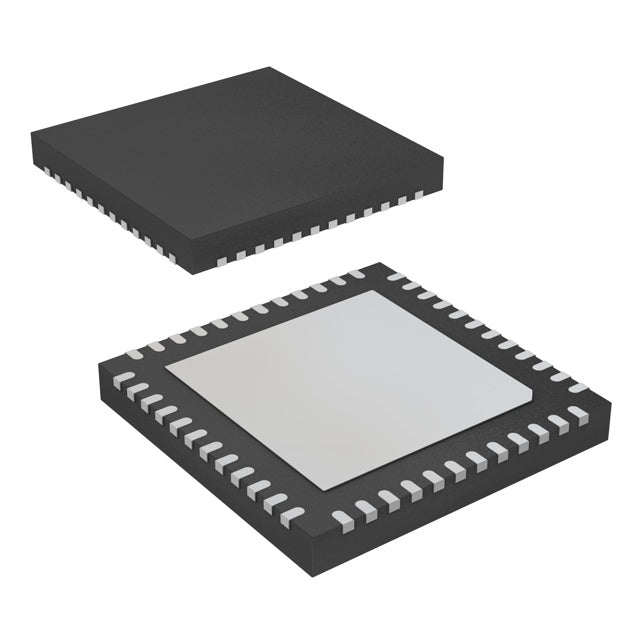

Texas Instruments MSP430FR5994IRGZR
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $7.30 | $7.30 |
| 15+ | $7.07 | $106.05 |
| 25+ | $6.91 | $172.75 |
| 50+ | $6.53 | $326.50 |
| 100+ | $5.76 | $576.00 |
| N+ | $1.15 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Texas Instruments |
| Product Series | MSP430™ FRAM |
| Packaging | Cut Tape (CT) | Tape & Reel (TR) |
| Core Processor | MSP430 CPUXV2 |
| Core Size | 16-Bit |
| Speed | 16MHz |
| Connectivity | I2C, IrDA, SPI, UART/USART |
| Peripherals | Brown-out Detect/Reset, DMA, POR, PWM, WDT |
| Number of I/O | 40 |
| Program Memory Size | 256KB (256K x 8) |
| Program Memory Type | FRAM |
| EEPROM Size | - |
| RAM Size | 8K x 8 |
| Voltage - Supply (Vcc/Vdd) | 1.8V ~ 3.6V |
| Data Converters | A/D 16x12b |
| Oscillator Type | External, Internal |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Grade | - |
| Qualification AEC | - |
| Mounting Type | Surface Mount |
| Supplier Device Package | 48-VQFN (7x7) |
| Package / Case | 48-VFQFN Exposed Pad |
| ROHS |  |
The MSP430FR5994IRGZR from Texas Instruments is an ultra-low-power 16-bit MCU featuring 256KB of FRAM and 8KB of SRAM. It operates at 16MHz with a supply voltage of 1.8V to 3.6V. The 48-VFQFN package is compact for portable designs. Its FRAM technology offers fast writes and high endurance.
- FRAM memory: Fast writes, high endurance, and low power.
- Ultra-low power: Ideal for battery-operated devices.
- Integrated DMA: Efficient data transfer without CPU load.
- Wide voltage range: 1.8V to 3.6V for flexible power.
Smart Meters
FRAM provides instant write endurance and low power, ideal for frequent data logging in utility meters.
Wearable Health Monitors
Ultra-low power consumption and 1.8V operation extend battery life in fitness trackers and medical patches.
Industrial Sensors
With DMA and multiple timers, it can process sensor data and communicate over industrial buses while maintaining low power.
Data Loggers
FRAM's high endurance (10^15 write cycles) allows continuous logging without wear concerns, unlike flash.
Portable Instrumentation
The 16-bit core and integrated ADC handle precise measurements in handheld devices, with PWM for control outputs.
- Q: What is the core of the MSP430FR5994IRGZR?
- A: It uses the MSP430 CPUXV2 16-bit RISC core.
- Q: What is the maximum clock speed?
- A: It runs at up to 16MHz.
- Q: How much FRAM memory does it have?
- A: It has 256KB of FRAM.
- Q: What is the supply voltage range?
- A: It operates from 1.8V to 3.6V.
