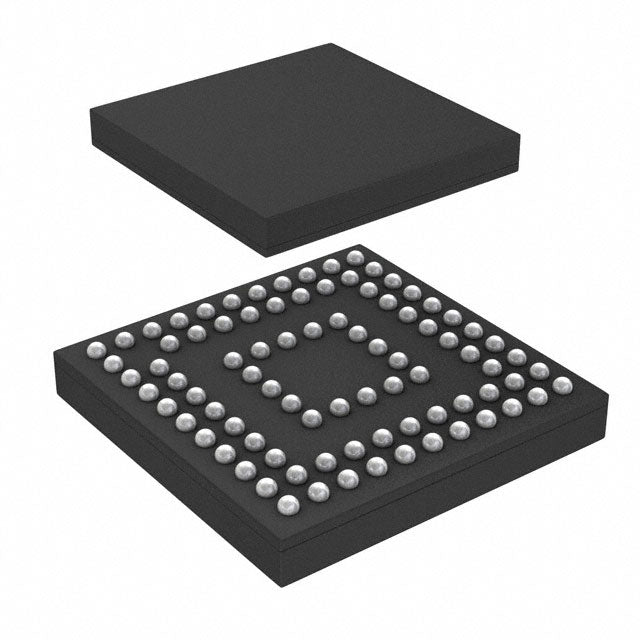

Texas Instruments MSP430FR5994IZVW
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $10.04 | $10.04 |
| 15+ | $9.72 | $145.80 |
| 25+ | $9.51 | $237.75 |
| 50+ | $8.98 | $449.00 |
| 100+ | $7.93 | $793.00 |
| N+ | $1.59 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Texas Instruments |
| Product Series | MSP430™ FRAM |
| Packaging | Tray | |
| Core Processor | MSP430 CPUXV2 |
| Core Size | 16-Bit |
| Speed | 16MHz |
| Connectivity | I2C, IrDA, SPI, UART/USART |
| Peripherals | Brown-out Detect/Reset, DMA, POR, PWM, WDT |
| Number of I/O | 68 |
| Program Memory Size | 256KB (256K x 8) |
| Program Memory Type | FRAM |
| EEPROM Size | - |
| RAM Size | 8K x 8 |
| Voltage - Supply (Vcc/Vdd) | 1.8V ~ 3.6V |
| Data Converters | A/D 20x12b |
| Oscillator Type | External, Internal |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Grade | - |
| Qualification AEC | - |
| Mounting Type | Surface Mount |
| Supplier Device Package | 87-NFBGA (6x6) |
| Package / Case | 87-VFBGA |
| ROHS |  |
The Texas Instruments MSP430FR5994IZVW is an ultra-low-power microcontroller featuring 256KB of FRAM, a revolutionary non-volatile memory that offers high speed, low power, and exceptional endurance. Based on the 16-bit MSP430 CPUXV2 core running at 16MHz, it provides efficient processing for a wide range of applications. Its low power consumption and small 87-ball VFBGA package make it ideal for battery-powered and space-constrained designs, including wearables, smart meters, and sensor nodes.
- Ultra-Low Power: FRAM technology and optimized architecture enable years of battery life.
- High-Endurance FRAM: 256KB of FRAM with 10^15 write cycles for reliable data logging.
- Fast Wake-Up: Wakes from standby in microseconds, ideal for event-driven applications.
- Compact Package: 87-ball VFBGA saves valuable board space in portable devices.
Smart Meters
The ultra-low-power FRAM allows for instant writes and high endurance, making it ideal for metering applications that require frequent data logging.
Wearable Devices
With low power consumption and a small package, it is perfect for health monitors, fitness trackers, and other battery-powered wearables.
Sensor Nodes
In wireless sensor networks, the low-power modes and fast wake-up times enable long battery life and reliable data transmission.
Data Logging
FRAM's high write endurance and speed make it excellent for continuous data logging in industrial and environmental monitoring systems.
Portable Medical Devices
The low power and integrated analog peripherals support glucose meters, pulse oximeters, and other portable diagnostic tools.
Energy Harvesting
Its ultra-low power consumption allows it to operate effectively in energy-harvesting applications, such as self-powered wireless switches.
- Q: What is unique about the MSP430FR5994IZVW?
- A: It features ultra-low-power FRAM technology, combining the speed of RAM with the non-volatility of flash.
- Q: What is the core processor?
- A: It uses the MSP430 CPUXV2 16-bit RISC core running at up to 16MHz.
- Q: How much FRAM is available?
- A: It has 256KB of FRAM and 8KB of SRAM.
- Q: What is the package type?
- A: This device is available in an 87-ball VFBGA package.
- Q: What is the supply voltage range?
- A: The operating voltage is from 1.8V to 3.6V.
