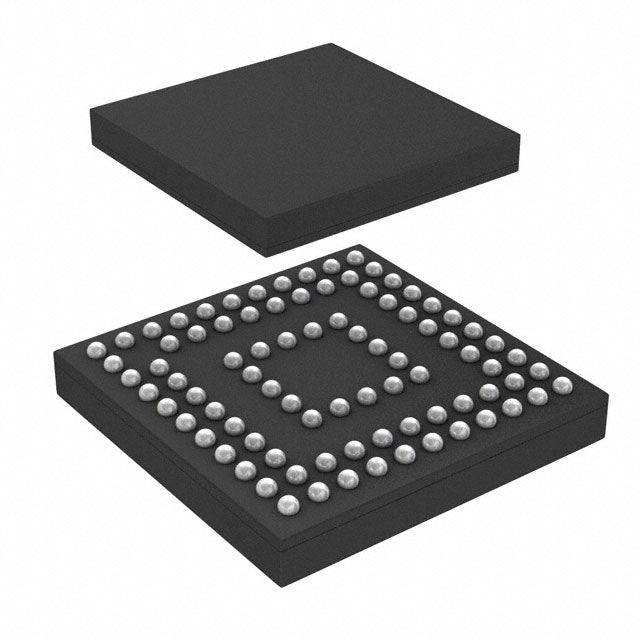

Texas Instruments MSP430FR5994IZVWR
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $7.41 | $7.41 |
| 15+ | $7.18 | $107.70 |
| 25+ | $7.02 | $175.50 |
| 50+ | $6.63 | $331.50 |
| 100+ | $5.85 | $585.00 |
| N+ | $1.17 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Texas Instruments |
| Product Series | MSP430™ FRAM |
| Packaging | Cut Tape (CT) | Tape & Reel (TR) |
| Core Processor | MSP430 CPUXV2 |
| Core Size | 16-Bit |
| Speed | 16MHz |
| Connectivity | I2C, IrDA, SPI, UART/USART |
| Peripherals | Brown-out Detect/Reset, DMA, POR, PWM, WDT |
| Number of I/O | 68 |
| Program Memory Size | 256KB (256K x 8) |
| Program Memory Type | FRAM |
| EEPROM Size | - |
| RAM Size | 8K x 8 |
| Voltage - Supply (Vcc/Vdd) | 1.8V ~ 3.6V |
| Data Converters | A/D 20x12b |
| Oscillator Type | External, Internal |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Grade | - |
| Qualification AEC | - |
| Mounting Type | Surface Mount |
| Supplier Device Package | 87-NFBGA (6x6) |
| Package / Case | 87-VFBGA |
| ROHS |  |
The Texas Instruments MSP430FR5994IZVWR is a 16-bit ultra-low-power MCU featuring the MSP430 CPUXV2 core at 16MHz. It integrates 256KB of FRAM and 8KB of SRAM, operating from 1.8V to 3.6V. The 87-VFBGA package includes DMA, PWM, and brown-out detection, making it suitable for battery-powered and energy-harvesting applications.
- Ultra-low power consumption: FRAM technology enables near-zero standby current, extending battery life in portable devices.
- High endurance memory: 256KB FRAM with 10^15 write cycles outperforms flash for frequent data logging.
- Integrated analog peripherals: PWM and DMA reduce external components, lowering BOM cost.
- Wide voltage range: 1.8V-3.6V operation supports direct battery connection without regulators.
Ultra-Low-Power Sensor Nodes
The 16MHz CPUXV2 core with 256KB FRAM enables complex sensor fusion algorithms while maintaining sub-1µA standby currents, extending battery life in IoT nodes.
Energy Harvesting Systems
With a 1.8V minimum supply and integrated brown-out detection, this MCU can operate directly from solar cells or TEGs without boost converters, simplifying power design.
Data Logging with Instant Write
FRAM technology provides 10^15 write endurance and near-instant writes, making it ideal for high-frequency data logging without wear-leveling overhead.
Portable Medical Devices
The 8KB SRAM and DMA controller support real-time biosignal processing (ECG/EEG) while the low-power modes preserve battery during idle periods.
Smart Grid Meters
Dual power rails and PWM outputs allow direct interfacing with metering AFEs, while the 256KB FRAM stores tariff tables and consumption history reliably.
Industrial Process Controllers
The -40°C to 85°C range and watchdog timer ensure reliable operation in harsh factory environments, with FRAM providing non-volatile parameter storage.
- Q: What is the core architecture of the MSP430FR5994IZVWR?
- A: It uses the MSP430 CPUXV2 16-bit RISC core running at up to 16MHz.
- Q: What is the operating voltage range?
- A: It operates from 1.8V to 3.6V, suitable for battery-powered designs.
- Q: How much FRAM and SRAM does it include?
- A: It has 256KB of FRAM and 8KB of SRAM.
- Q: What package is available?
- A: It comes in an 87-VFBGA package.
- Q: Does it support low-power modes?
- A: Yes, it features multiple low-power modes ideal for energy harvesting.
