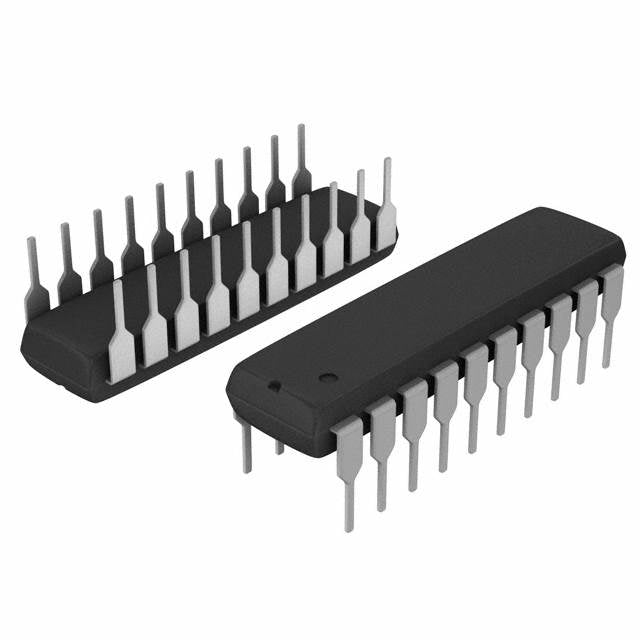

Texas Instruments MSP430G2112IN20
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $7.47 | $7.47 |
| 15+ | $1.72 | $25.80 |
| 25+ | $1.68 | $42.00 |
| 50+ | $1.59 | $79.50 |
| 100+ | $1.40 | $140.00 |
| N+ | $0.28 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Texas Instruments |
| Product Series | MSP430G2xx |
| Packaging | Marketplace | Tube |
| Core Processor | MSP430 CPU16 |
| Core Size | 16-Bit |
| Speed | 16MHz |
| Connectivity | I2C, SPI, USI |
| Peripherals | Brown-out Detect/Reset, DMA, POR, PWM, WDT |
| Number of I/O | 16 |
| Program Memory Size | 1KB (1K x 8) |
| Program Memory Type | FLASH |
| EEPROM Size | - |
| RAM Size | 128 x 8 |
| Voltage - Supply (Vcc/Vdd) | 1.8V ~ 3.6V |
| Data Converters | - |
| Oscillator Type | Internal |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Grade | - |
| Qualification AEC | - |
| Mounting Type | Through Hole |
| Supplier Device Package | 20-PDIP |
| Package / Case | 20-DIP (0.300", 7.62mm) |
| ROHS |  |
The MSP430G2112IN20 from Texas Instruments is a 16-bit microcontroller featuring the MSP430 CPU16 core at 16MHz. It offers 1KB of flash and 128 bytes of RAM, operating from 1.8V to 3.6V. Available in a 20-pin DIP package, it includes brown-out detection, DMA, POR, PWM, and WDT, making it an excellent choice for ultra-low-power and cost-sensitive applications.
- Ultra-low power: 16-bit RISC architecture with multiple low-power modes for battery operation.
- DIP package: Easy prototyping and through-hole assembly for hobbyist and educational use.
- Integrated DMA: Enables efficient data transfer without CPU intervention.
- Wide voltage range: 1.8V to 3.6V supports single-cell batteries and 3.3V systems.
Battery-Powered Sensors
Ultra-low-power 16-bit core with 1.8V operation extends battery life in wireless sensor nodes.
Analog Signal Conditioning
Integrated DMA and PWM support precise data acquisition from analog front-ends.
Simple Motor Controllers
16MHz speed and PWM outputs enable basic speed control for small DC motors.
Portable Health Monitors
Low power consumption and DIP package make it ideal for prototyping wearable heart-rate monitors.
Educational Kits
The 20-pin DIP package is breadboard-friendly, perfect for teaching embedded systems.
Smart Switches
With WDT and POR, it can reliably manage touch or mechanical switch inputs in home automation.
- Q: What is the core of the MSP430G2112IN20?
- A: It uses the MSP430 CPU16 16-bit RISC core at 16MHz.
- Q: What is the supply voltage range?
- A: It operates from 1.8V to 3.6V.
- Q: How much memory does it have?
- A: It includes 1KB of flash and 128 bytes of RAM.
- Q: What package is available?
- A: It comes in a 20-pin DIP package (0.300" width).
