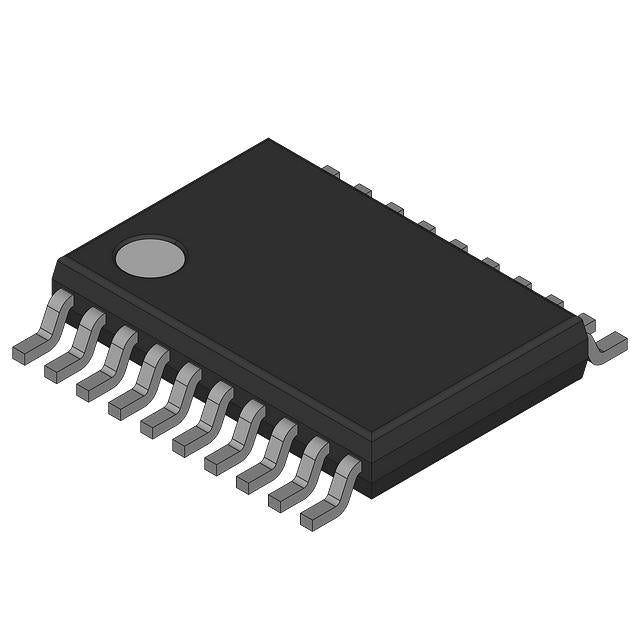

Texas Instruments MSP430G2202IPW20R
Regular price
$1.32
Regular price
$1.39
Sale price
$1.32
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $1.32 | $1.32 |
| 15+ | $1.28 | $19.20 |
| 25+ | $1.25 | $31.25 |
| 50+ | $1.18 | $59.00 |
| 100+ | $1.04 | $104.00 |
| N+ | $0.21 | Price Inquiry |
Shipping calculated at checkout.
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Texas Instruments |
| Product Series | MSP430G2xx |
| Packaging | Marketplace | Cut Tape (CT) |
| Core Processor | MSP430 CPU16 |
| Core Size | 16-Bit |
| Speed | 16MHz |
| Connectivity | I2C, SPI, USI |
| Peripherals | Brown-out Detect/Reset, DMA, POR, PWM, WDT |
| Number of I/O | 16 |
| Program Memory Size | 2KB (2K x 8) |
| Program Memory Type | FLASH |
| EEPROM Size | - |
| RAM Size | 256 x 8 |
| Voltage - Supply (Vcc/Vdd) | 1.8V ~ 3.6V |
| Data Converters | - |
| Oscillator Type | Internal |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Grade | - |
| Qualification AEC | - |
| Mounting Type | Surface Mount |
| Supplier Device Package | 20-TSSOP |
| Package / Case | 20-TSSOP (0.173", 4.40mm Width) |
| ROHS |  |
The MSP430G2202IPW20R is a 16-bit ultra-low-power microcontroller from Texas Instruments. It features the MSP430 CPU16 core running at 16MHz, with 2KB flash and 256B RAM. Housed in a 20-TSSOP package, it operates from 1.8V to 3.6V and includes DMA, PWM, and watchdog timer for versatile embedded control.
- 16-bit performance: MSP430 CPU16 delivers efficient code execution at 16MHz.
- Low-voltage operation: 1.8V minimum supply suits battery and energy-harvesting designs.
- Integrated peripherals: DMA, PWM, and WDT reduce external component count.
- Wide temperature range: -40°C to 85°C for industrial environments.
Wireless Sensor Networks
Low 1.8V operation and 16MHz speed enable efficient data aggregation in mesh nodes.
Consumer Electronics Remote Controls
DMA and PWM support IR signal generation with minimal CPU load.
Building Automation Controllers
Brown-out reset and WDT provide reliable operation in HVAC and lighting systems.
Portable Data Loggers
Ultra-low-power sleep modes preserve battery during long logging intervals.
Motor Control for Small Appliances
PWM outputs and 16MHz processing handle brushless DC motor commutation.
Security Keypads
Fast wake-up and robust reset ensure responsive, secure user interfaces.
- Q: What is the core architecture?
- A: MSP430 CPU16, 16-bit RISC.
- Q: What is the operating temperature range?
- A: -40°C to 85°C.
- Q: Does it have PWM outputs?
- A: Yes, PWM is included.
- Q: What is the package type?
- A: 20-TSSOP.
- Q: What is the RAM size?
- A: 256 bytes.
Base Product Number ：
MSP430G2202
MSP430G2202IPW20R.pdf
- Q: What is the core architecture?
- A: MSP430 CPU16, 16-bit RISC.
- Q: What is the operating temperature range?
- A: -40°C to 85°C.
- Q: Does it have PWM outputs?
- A: Yes, PWM is included.
- Q: What is the package type?
- A: 20-TSSOP.
- Q: What is the RAM size?
- A: 256 bytes.
×
