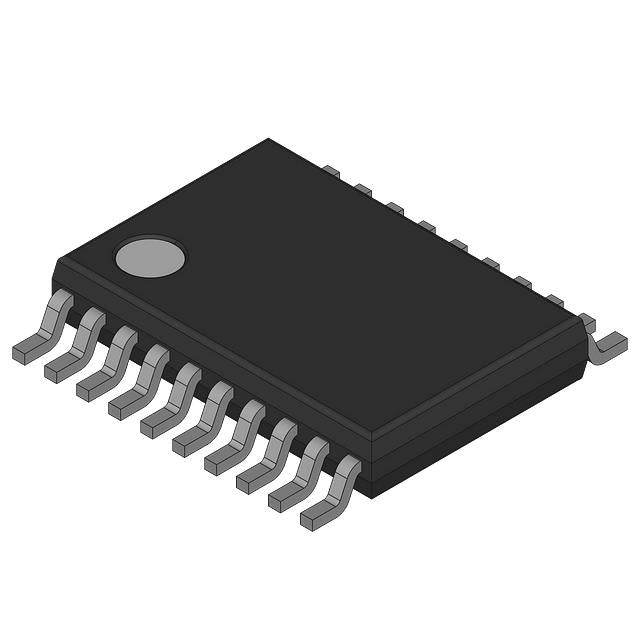

Texas Instruments MSP430G2212IPW20R
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $1.32 | $1.32 |
| 15+ | $1.28 | $19.20 |
| 25+ | $1.25 | $31.25 |
| 50+ | $1.18 | $59.00 |
| 100+ | $1.04 | $104.00 |
| N+ | $0.21 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Texas Instruments |
| Product Series | MSP430G2xx |
| Packaging | Marketplace | Cut Tape (CT) |
| Core Processor | MSP430 CPU16 |
| Core Size | 16-Bit |
| Speed | 16MHz |
| Connectivity | I2C, SPI, USI |
| Peripherals | Brown-out Detect/Reset, DMA, POR, PWM, WDT |
| Number of I/O | 16 |
| Program Memory Size | 2KB (2K x 8) |
| Program Memory Type | FLASH |
| EEPROM Size | - |
| RAM Size | 256 x 8 |
| Voltage - Supply (Vcc/Vdd) | 1.8V ~ 3.6V |
| Data Converters | - |
| Oscillator Type | Internal |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Grade | - |
| Qualification AEC | - |
| Mounting Type | Surface Mount |
| Supplier Device Package | 20-TSSOP |
| Package / Case | 20-TSSOP (0.173", 4.40mm Width) |
| ROHS |  |
The MSP430G2212IPW20R from Texas Instruments is a 16-bit ultra-low-power MCU featuring the MSP430 CPU16 core at 16MHz. It provides 2KB flash and 256B RAM in a compact 20-TSSOP package. With a 1.8V to 3.6V supply range and integrated DMA, PWM, and watchdog timer, it is ideal for cost-sensitive, battery-powered applications.
- Ultra-low power consumption: MSP430 architecture with 1.8V operation extends battery life.
- Integrated DMA: Enables data transfer without CPU intervention, improving efficiency.
- Robust reset management: POR and brown-out detect ensure stable startup and operation.
- Compact 20-TSSOP: Saves board space for space-constrained designs.
Battery-Powered Sensor Nodes
Ultra-low-power MSP430 core with 1.8V operation extends battery life in IoT and portable sensing.
Industrial Control I/O Modules
16MHz CPU16 with PWM and DMA enables real-time actuator control and data logging.
Smart Home Thermostats
Integrated POR and brown-out reset ensure reliable operation during power fluctuations.
Portable Medical Monitors
Low power draw and small TSSOP footprint suit compact, wearable health devices.
Automotive Body Electronics
Wide temp range (-40°C to 85°C) and robust reset circuitry support under-hood modules.
Energy Harvesting Systems
1.8V minimum supply allows direct operation from single-cell solar or thermal harvesters.
- Q: What is the supply voltage range?
- A: 1.8V to 3.6V.
- Q: What is the maximum clock speed?
- A: 16MHz.
- Q: How much flash and RAM does it have?
- A: 2KB flash and 256B RAM.
- Q: What package is available?
- A: 20-TSSOP.
- Q: Does it include a watchdog timer?
- A: Yes, WDT is included.
