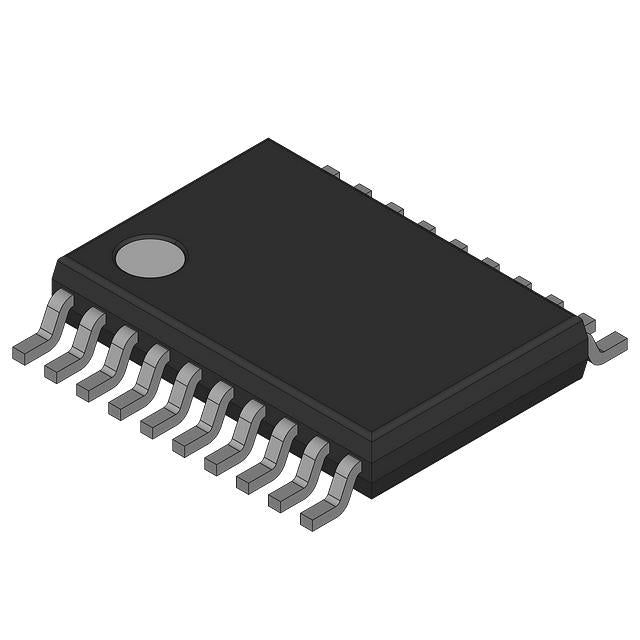

Texas Instruments MSP430G2232IPW20R
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $2.75 | $2.75 |
| 15+ | $0.63 | $9.45 |
| 25+ | $0.62 | $15.50 |
| 50+ | $0.59 | $29.50 |
| 100+ | $0.52 | $52.00 |
| N+ | $0.10 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Texas Instruments |
| Product Series | MSP430G2xx |
| Packaging | Marketplace | Tape & Reel (TR) |
| Core Processor | MSP430 CPU16 |
| Core Size | 16-Bit |
| Speed | 16MHz |
| Connectivity | I2C, SPI, USI |
| Peripherals | Brown-out Detect/Reset, DMA, POR, PWM, WDT |
| Number of I/O | 16 |
| Program Memory Size | 2KB (2K x 8) |
| Program Memory Type | FLASH |
| EEPROM Size | - |
| RAM Size | 256 x 8 |
| Voltage - Supply (Vcc/Vdd) | 1.8V ~ 3.6V |
| Data Converters | A/D 8x10b |
| Oscillator Type | Internal |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Grade | - |
| Qualification AEC | - |
| Mounting Type | Surface Mount |
| Supplier Device Package | 20-TSSOP |
| Package / Case | 20-TSSOP (0.173", 4.40mm Width) |
| ROHS |  |
The MSP430G2232IPW20R from Texas Instruments is a 16-bit ultra-low-power MCU based on the MSP430 CPU16. It operates at 16MHz with 2KB flash and 256B RAM. The supply voltage ranges from 1.8V to 3.6V, making it ideal for battery-powered applications. The 20-TSSOP package provides a compact yet accessible form factor for prototyping and production.
- Ultra-Low Power 16-bit Core: MSP430 architecture consumes microamps in active mode, extending battery life.
- Wide Voltage Range: 1.8V-3.6V supports single-cell batteries and energy harvesting.
- Integrated DMA: Reduces CPU load for data transfer, improving efficiency.
- Compact TSSOP-20: Balances pin count and board space for small designs.
Battery-Powered Data Loggers
Ultra-low power 16-bit core and 1.8V operation enable years of operation from coin cells.
Sensor Signal Conditioning
Integrated DMA and PWM allow efficient handling of analog sensor data in industrial monitors.
Wireless Sensor Nodes
Small 2KB flash is sufficient for simple protocol stacks in sub-GHz or BLE sensor nodes.
Portable Medical Thermometers
Low power and small TSSOP package fit compact clinical devices with high accuracy.
Smart Agriculture Probes
Wide temperature range (-40°C to 85°C) supports outdoor soil moisture monitoring.
Energy Harvesting Systems
1.8V minimum voltage allows direct operation from solar cells or thermoelectric generators.
- Q: What is the core processor in MSP430G2232IPW20R?
- A: It uses the MSP430 CPU16, a 16-bit RISC architecture known for ultra-low power.
- Q: What is the maximum clock speed?
- A: It runs at 16MHz, balancing performance with energy efficiency.
- Q: How much flash and RAM does it have?
- A: It offers 2KB flash and 256 bytes of RAM for small embedded applications.
- Q: What is the supply voltage range?
- A: It operates from 1.8V to 3.6V, ideal for single-cell battery designs.
- Q: What package is available?
- A: It comes in a 20-TSSOP package with 0.173" width, suitable for through-hole or SMD assembly.
