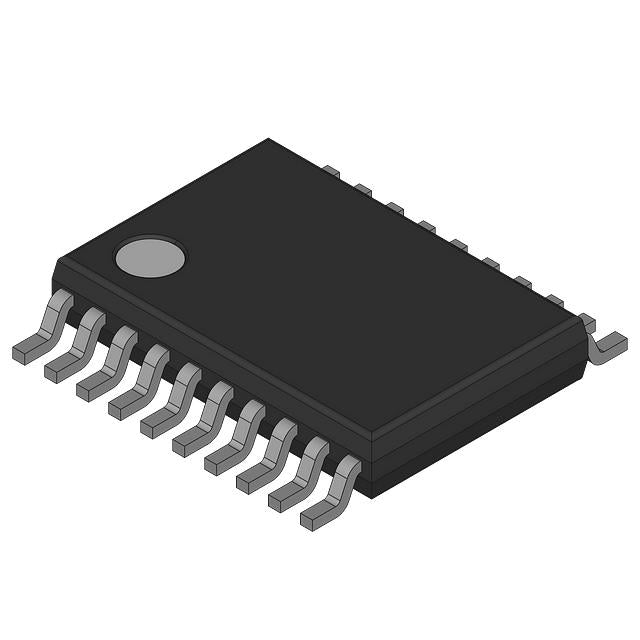

Texas Instruments MSP430G2333IPW0RQ1
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $94,999.99 | $94,999.99 |
| 15+ | $91,999.99 | $1,379,999.85 |
| 25+ | $89,999.99 | $2,249,999.75 |
| 50+ | $84,999.99 | $4,249,999.50 |
| 100+ | $74,999.99 | $7,499,999.00 |
| N+ | $15,000.00 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Texas Instruments |
| Product Series | MSP430G2 |
| Packaging | | Tape & Reel (TR) |
| Core Processor | MSP430 CPU16 |
| Core Size | 16-Bit |
| Speed | 16MHz |
| Connectivity | I2C, IrDA, LINbus, SCI, SPI, UART/USART |
| Peripherals | Brown-out Detect/Reset, PWM, WDT |
| Number of I/O | 16 |
| Program Memory Size | 4KB (4K x 8) |
| Program Memory Type | FLASH |
| EEPROM Size | - |
| RAM Size | 256 x 8 |
| Voltage - Supply (Vcc/Vdd) | 1.8V ~ 3.6V |
| Data Converters | A/D 8x10b |
| Oscillator Type | Internal |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Grade | Automotive |
| Qualification | AEC-Q100 |
| Mounting Type | Surface Mount |
| Supplier Device Package | 20-TSSOP |
| Package / Case | 20-TSSOP (0.173", 4.40mm Width) |
| ROHS |  |
The Texas Instruments MSP430G2333IPW0RQ1 is a 16-bit automotive-grade microcontroller with 4KB Flash and 256B RAM. It operates from 1.8V to 3.6V at speeds up to 16MHz. The 20-TSSOP package offers a compact solution for control applications. Its AEC-Q100 qualification and integrated PWM/WDT make it a dependable choice for vehicle electronics.
- AEC-Q100 Qualified: Meets automotive reliability standards.
- Balanced Memory: 4KB Flash and 256B RAM suit mid-complexity control tasks.
- Low-Power 16-bit Core: Efficient processing for battery-sensitive automotive modules.
- Multiple Timers: PWM and WDT enhance control and safety.
Automotive Seat Control Units
4KB Flash and PWM enable precise motor control for seat adjustment systems.
HVAC Blower Controllers
16-bit processing and PWM outputs regulate blower speeds in automotive climate systems.
Brake Light Modules
Reliable operation and WDT ensure fail-safe control of LED brake lights.
Fuel Pump Drivers
With 256B RAM, it can manage simple pump control algorithms in fuel delivery systems.
Steering Angle Sensors
Compact TSSOP-20 package fits into steering column sensor modules.
Aftermarket Telematics
Low power consumption supports always-on vehicle tracking devices.
- Q: What is the program memory size of the MSP430G2333IPW0RQ1?
- A: It has 4KB (4K x 8) of Flash memory.
- Q: What is the operating temperature range?
- A: It operates from -40°C to 85°C.
- Q: Does it support PWM?
- A: Yes, it includes PWM and WDT.
- Q: What is the package type?
- A: It comes in a 20-TSSOP package.
- Q: Is it automotive qualified?
- A: Yes, the Q1 suffix denotes AEC-Q100 qualification.
