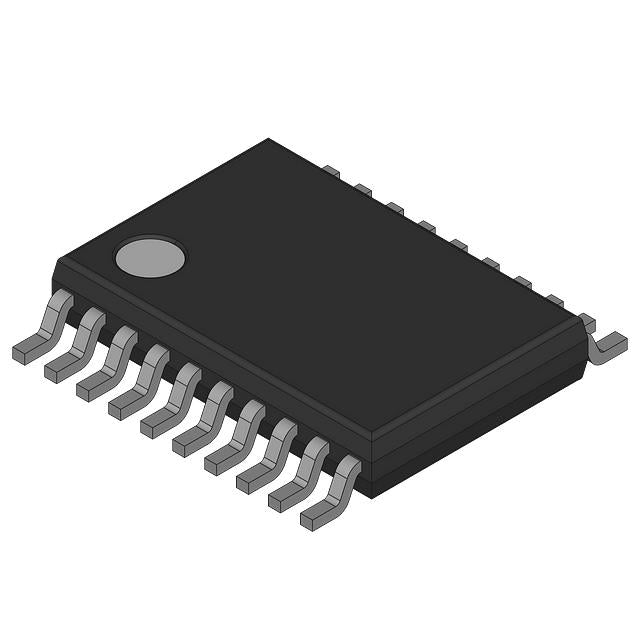

Texas Instruments MSP430G2333IPW20R
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $1.48 | $1.48 |
| 15+ | $1.44 | $21.60 |
| 25+ | $1.40 | $35.00 |
| 50+ | $1.33 | $66.50 |
| 100+ | $1.17 | $117.00 |
| N+ | $0.23 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Texas Instruments |
| Product Series | MSP430G2xx |
| Packaging | Cut Tape (CT) | Tape & Reel (TR) |
| Core Processor | MSP430 CPU16 |
| Core Size | 16-Bit |
| Speed | 16MHz |
| Connectivity | I2C, IrDA, LINbus, SCI, SPI, UART/USART |
| Peripherals | Brown-out Detect/Reset, PWM, WDT |
| Number of I/O | 16 |
| Program Memory Size | 4KB (4K x 8) |
| Program Memory Type | FLASH |
| EEPROM Size | - |
| RAM Size | 256 x 8 |
| Voltage - Supply (Vcc/Vdd) | 1.8V ~ 3.6V |
| Data Converters | A/D 8x10b |
| Oscillator Type | Internal |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Grade | - |
| Qualification AEC | - |
| Mounting Type | Surface Mount |
| Supplier Device Package | 20-TSSOP |
| Package / Case | 20-TSSOP (0.173", 4.40mm Width) |
| ROHS |  |
The Texas Instruments MSP430G2333IPW20R is a 16-bit ultra-low-power microcontroller. It features 4KB of flash and 256 bytes of RAM, sufficient for simple control and monitoring tasks. Operating from 1.8V to 3.6V, it is optimized for battery-powered applications. The 20-pin TSSOP package offers a compact footprint. With integrated PWM, WDT, and brown-out reset, it provides reliable operation in various embedded systems.
- Ultra-low-power 16-bit core extends battery life significantly.
- 1.8V operation allows direct use with single-cell batteries.
- 16MHz clock provides adequate processing for real-time tasks.
- Compact TSSOP package is ideal for space-constrained designs.
Battery-Powered Data Loggers
The ultra-low-power MSP430 core can run for years on a coin cell while logging temperature or voltage data.
Wireless Sensor Networks
With 16MHz speed and low power, it can process sensor data and wake up radios for periodic transmission.
Energy Harvesting Systems
Operating from 1.8V, it can be powered by small solar cells or thermoelectric generators.
Portable Instrumentation
Its small TSSOP package and low power make it suitable for handheld multimeters or signal generators.
Smart Agriculture Sensors
It can monitor soil moisture and control irrigation valves, powered by batteries in remote fields.
Medical Wearables
Low power consumption enables continuous monitoring in wearable ECG or temperature patches.
- Q: What is the core architecture of the MSP430G2333IPW20R?
- A: It uses the 16-bit MSP430 CPU16 core, known for ultra-low power consumption.
- Q: What is the supply voltage range?
- A: It operates from 1.8V to 3.6V, ideal for battery-powered applications.
- Q: How much flash memory is included?
- A: It has 4KB of program flash and 256 bytes of RAM.
- Q: Does it support PWM?
- A: Yes, it includes timer modules that can generate PWM signals.
- Q: What package is this available in?
- A: It comes in a 20-pin TSSOP (4.40mm width) package.
