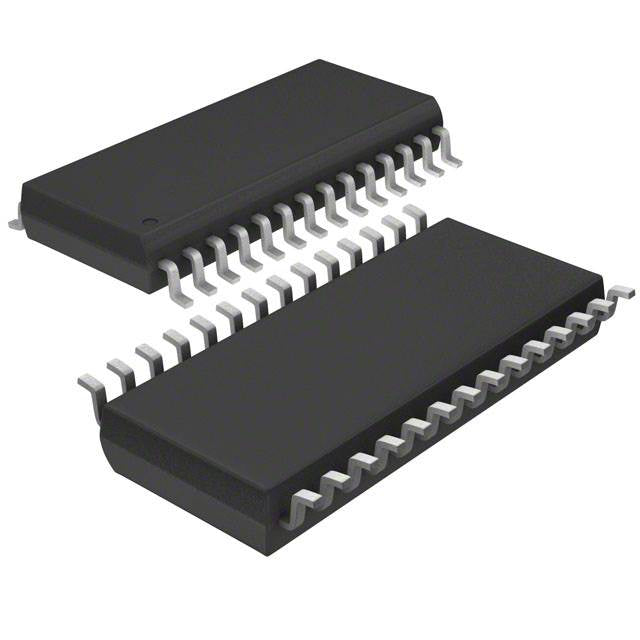

Texas Instruments MSP430G2333IPW28
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $2.03 | $2.03 |
| 15+ | $1.97 | $29.55 |
| 25+ | $1.93 | $48.25 |
| 50+ | $1.82 | $91.00 |
| 100+ | $1.61 | $161.00 |
| N+ | $0.32 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Texas Instruments |
| Product Series | MSP430G2xx |
| Packaging | Tube | NULL |
| Core Processor | MSP430 CPU16 |
| Core Size | 16-Bit |
| Speed | 16MHz |
| Connectivity | I2C, IrDA, LINbus, SCI, SPI, UART/USART |
| Peripherals | Brown-out Detect/Reset, PWM, WDT |
| Number of I/O | 24 |
| Program Memory Size | 4KB (4K x 8) |
| Program Memory Type | FLASH |
| EEPROM Size | - |
| RAM Size | 256 x 8 |
| Voltage - Supply (Vcc/Vdd) | 1.8V ~ 3.6V |
| Data Converters | A/D 8x10b |
| Oscillator Type | Internal |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Grade | - |
| Qualification AEC | - |
| Mounting Type | Surface Mount |
| Supplier Device Package | 28-TSSOP |
| Package / Case | 28-TSSOP (0.173", 4.40mm Width) |
| ROHS |  |
The MSP430G2333IPW28 from Texas Instruments is a 16-bit MSP430 microcontroller. It operates from 1.8V to 3.6V at speeds up to 16MHz. Featuring 4KB of program memory and 256 bytes of RAM, it includes PWM, WDT, and brown-out detection. Packaged in a 28-TSSOP, it is designed for ultra-low-power embedded applications.
- Ultra-low power: 16-bit MSP430 architecture is renowned for energy efficiency.
- High performance: 16MHz clock speed enables fast processing.
- Compact package: 28-TSSOP saves board space.
- Integrated peripherals: PWM and WDT reduce external component count.
Wireless Sensor Networks
Ultra-low power 16-bit core and 1.8V operation extend battery life in remote sensors.
Portable Medical Monitors
16MHz speed enables real-time processing of bio-signals like heart rate.
Smart Meters
PWM and WDT support accurate measurement and reliable operation in utility meters.
Handheld Test Equipment
Low power consumption and small TSSOP package suit portable multimeters.
Building Automation Controllers
4KB Flash is enough for simple HVAC and lighting control logic.
Consumer Wearables
Efficient MSP430 architecture minimizes energy draw for fitness bands.
- Q: What is the core architecture?
- A: It uses the 16-bit MSP430 CPU16 core.
- Q: What is the maximum clock speed?
- A: 16MHz, providing efficient processing for low-power applications.
- Q: How much RAM is available?
- A: 256 bytes of RAM, suitable for small data buffers.
- Q: What package is offered?
- A: 28-TSSOP, a space-saving surface-mount package.
