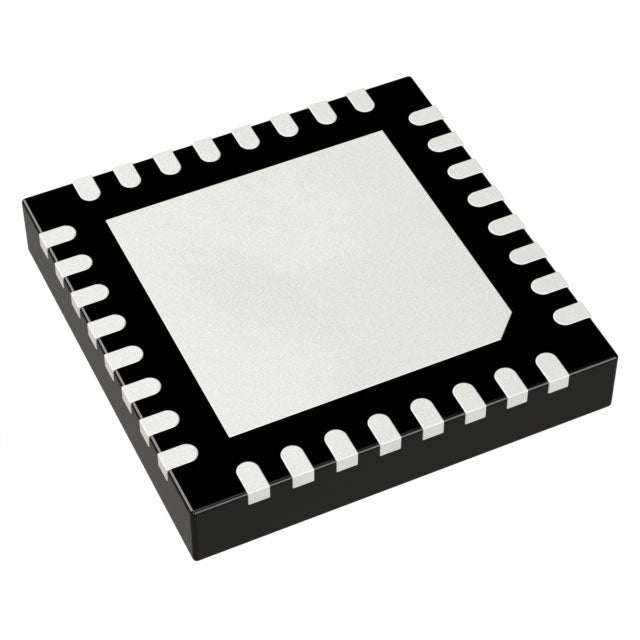

Texas Instruments MSP430G2353IRHB32R
Regular price
$3.41
Regular price
$0.85
Sale price
$3.41
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $3.41 | $3.41 |
| 15+ | $0.78 | $11.70 |
| 25+ | $0.77 | $19.25 |
| 50+ | $0.72 | $36.00 |
| 100+ | $0.64 | $64.00 |
| N+ | $0.13 | Price Inquiry |
Shipping calculated at checkout.
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Texas Instruments |
| Product Series | MSP430G2xx |
| Packaging | Tape & Reel (TR) | NULL |
| Core Processor | MSP430 CPU16 |
| Core Size | 16-Bit |
| Speed | 16MHz |
| Connectivity | I2C, IrDA, LINbus, SCI, SPI, UART/USART |
| Peripherals | Brown-out Detect/Reset, DMA, POR, PWM, WDT |
| Number of I/O | 24 |
| Program Memory Size | 4KB (4K x 8) |
| Program Memory Type | FLASH |
| EEPROM Size | - |
| RAM Size | 256 x 8 |
| Voltage - Supply (Vcc/Vdd) | 1.8V ~ 3.6V |
| Data Converters | A/D 8x10b |
| Oscillator Type | Internal |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Grade | - |
| Qualification AEC | - |
| Mounting Type | Surface Mount |
| Supplier Device Package | 32-VQFN (5x5) |
| Package / Case | 32-VFQFN Exposed Pad |
| ROHS |  |
The MSP430G2353IRHB32R from Texas Instruments is a low-power 16-bit MCU with a 16MHz MSP430 CPU16 core. It offers 4KB flash and 256B RAM, operating from 1.8V to 3.6V. Features include Brown-out Reset, DMA, POR, PWM, and WDT, all in a compact 32-VFQFN package.
- Ultra-low power consumption: Ideal for battery-powered devices.
- DMA controller: Enables efficient data transfer without CPU intervention.
- 16MHz performance: Sufficient for real-time signal processing.
- Compact 32-VFQFN: Saves board space in portable designs.
Wearable Fitness Trackers
Ultra-low power MSP430 core extends battery life in step counters.
Wireless Sensor Nodes
1.8V operation and DMA support efficient sensor data collection.
Medical Disposable Devices
Small 32-VFQFN package fits in single-use diagnostic tools.
Smart Meters
16MHz speed handles metering calculations; low power suits always-on operation.
Portable Instruments
PWM and BOR ensure stable readings in handheld multimeters.
Security Systems
WDT and POR provide reliable operation in alarm panels.
- Q: What is the core architecture?
- A: It uses the MSP430 CPU16, a 16-bit RISC processor.
- Q: What is the maximum clock speed?
- A: The CPU runs at up to 16MHz.
- Q: How much RAM is available?
- A: It has 256 bytes of RAM and 4KB of flash.
- Q: What is the supply voltage range?
- A: It operates from 1.8V to 3.6V, optimized for low-power applications.
Base Product Number ：
MSP430G2353
MSP430G2353IRHB32R.pdf
