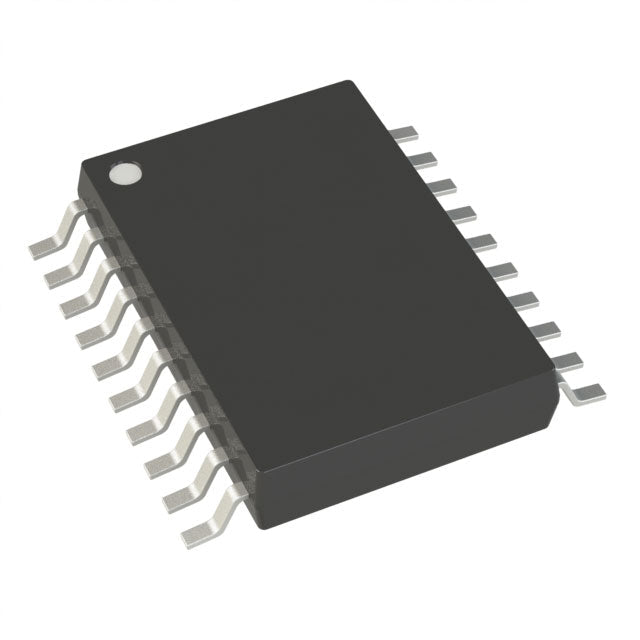

Texas Instruments MSPM0G3105SDGS20R
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $1.43 | $1.43 |
| 15+ | $1.38 | $20.70 |
| 25+ | $1.35 | $33.75 |
| 50+ | $1.28 | $64.00 |
| 100+ | $1.13 | $113.00 |
| N+ | $0.23 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Texas Instruments |
| Product Series | MSPM0 G |
| Packaging | Cut Tape (CT) | NULL |
| Core Processor | ARM® Cortex®-M0+ |
| Core Size | 32-Bit |
| Speed | 80MHz |
| Connectivity | CANbus, DALI, I2C, IrDA, LINbus, SmartCard, SMBus, SPI, UART/USART |
| Peripherals | AES, Brown-out Detect/Reset, DMA, POR, PWM, TRNG, WDT |
| Number of I/O | 16 |
| Program Memory Size | 32KB (32K x 8) |
| Program Memory Type | FLASH |
| EEPROM Size | - |
| RAM Size | 16K x 8 |
| Voltage - Supply (Vcc/Vdd) | 1.62V ~ 3.6V |
| Data Converters | A/D 6x12b SAR |
| Oscillator Type | External, Internal |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Grade | - |
| Qualification AEC | - |
| Mounting Type | Surface Mount |
| Supplier Device Package | 20-VSSOP |
| Package / Case | 20-TFSOP (0.118", 3.00mm Width) |
| ROHS |  |
The Texas Instruments MSPM0G3105SDGS20R is an 80MHz ARM Cortex-M0+ microcontroller in a 20-TFSOP package. It offers 32KB flash and 16KB RAM, with hardware AES and TRNG for secure applications. Operating from 1.62V to 3.6V and -40°C to 125°C, it suits industrial and automotive environments requiring high reliability and compact size.
- Hardware security (AES, TRNG) – enables secure boot and encrypted data without software overhead.
- Wide temperature range (-40°C to 125°C) – reliable in extreme conditions.
- 80MHz performance – fast processing for real-time control.
- Integrated DMA – reduces CPU load for data transfer.
Battery-Powered IoT Sensors
1.62V minimum operation and 16KB RAM support low-power edge processing.
Secure Communication Modules
Hardware AES and TRNG enable encrypted data transmission without CPU overhead.
Automotive Environment Monitoring
125°C rating and brown-out detection ensure reliable operation in engine bays.
Portable Instrumentation
80MHz Cortex-M0+ with DMA accelerates ADC data logging in 20-TFSOP package.
Industrial Actuators
PWM and WDT provide precise control and fault recovery in harsh environments.
Smart Grid Meters
Low power consumption and robust reset circuitry meet utility metering requirements.
- Q: What is the core architecture?
- A: ARM Cortex-M0+ at 80MHz.
- Q: What is the supply voltage range?
- A: 1.62V to 3.6V.
- Q: What security features are included?
- A: AES, TRNG, and DMA.
- Q: What is the operating temperature?
- A: -40°C to 125°C.
