Texas Instruments MSPM0G3106SRHBR
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $1.49 | $1.49 |
| 15+ | $1.44 | $21.60 |
| 25+ | $1.41 | $35.25 |
| 50+ | $1.33 | $66.50 |
| 100+ | $1.18 | $118.00 |
| N+ | $0.24 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Texas Instruments |
| Product Series | MSPM0 G |
| Packaging | Cut Tape (CT) | Tape & Reel (TR) |
| Core Processor | ARM® Cortex®-M0+ |
| Core Size | 32-Bit |
| Speed | 80MHz |
| Connectivity | CANbus, I2C, SMBus, SPI, UART/USART |
| Peripherals | Brown-out Detect/Reset, DMA, POR, PWM, TRNG, WDT |
| Number of I/O | 28 |
| Program Memory Size | 64KB (64K x 8) |
| Program Memory Type | FLASH |
| EEPROM Size | - |
| RAM Size | 32K x 8 |
| Voltage - Supply (Vcc/Vdd) | 1.62V ~ 3.6V |
| Data Converters | A/D 11x12b SAR |
| Oscillator Type | External, Internal |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Grade | - |
| Qualification AEC | - |
| Mounting Type | Surface Mount |

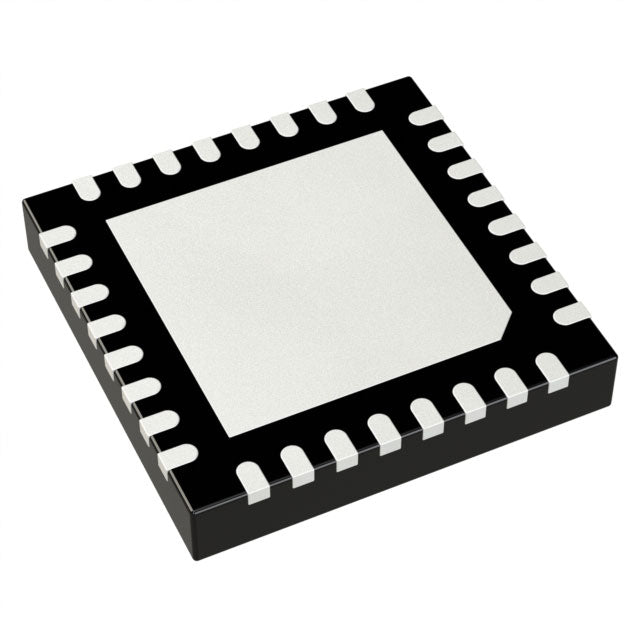

| Supplier Device Package | 32-VQFN (5x5) |
| Package / Case | 32-VFQFN Exposed Pad |
| ROHS |  |
The MSPM0G3106SRHBR from Texas Instruments is a powerful 32-bit ARM Cortex-M0+ microcontroller, operating at 80MHz with 64KB Flash and 32KB RAM. It supports a supply voltage of 1.62V to 3.6V, ideal for low-power and battery-operated devices. The device includes advanced peripherals such as DMA, PWM, TRNG, and multiple analog channels. Its 32-pin VFQFN package is compact, and the extended temperature range (-40°C to 125°C) ensures reliability in industrial settings.
- High Performance: 80MHz Cortex-M0+ delivers 2x throughput of typical 8-bit MCUs.
- Large Memory: 64KB Flash and 32KB RAM support complex firmware and data buffering.
- Security Feature: Integrated TRNG enables secure key generation for encrypted communications.
- Low Power: 1.62V operation and multiple sleep modes extend battery life.
- Robust Design: 125°C rating and DMA offload CPU for real-time tasks.
IoT Edge Nodes
With 80MHz and 32KB RAM, it can run lightweight ML models for predictive maintenance, while TRNG secures communication.
Battery-Powered Sensors
Low voltage (1.62V) and low power modes extend battery life in wireless sensor networks.
Motor Control
High-speed PWM and DMA enable field-oriented control of brushless DC motors with minimal CPU load.
Portable Medical Monitors
32KB RAM supports buffering of ECG or SpO2 data, while the small package fits wearable devices.
Smart Grid Meters
Accurate ADC and robust operation at 125°C make it suitable for energy metering in harsh environments.
Industrial Automation
Multiple communication interfaces (UART, SPI, I2C) and DMA simplify PLC I/O modules.
- Q: What core does MSPM0G3106SRHBR use?
- A: It uses an ARM Cortex-M0+ core running at up to 80MHz.
- Q: What is the supply voltage range?
- A: It operates from 1.62V to 3.6V, optimized for low-power designs.
- Q: How much Flash and RAM does it have?
- A: It has 64KB Flash and 32KB RAM, generous for complex applications.
- Q: Does it include a TRNG?
- A: Yes, it features a True Random Number Generator for security applications.
- Q: What is the package type?
- A: It comes in a 32-pin VFQFN exposed pad package.
MSPM0G3106SRHBR.pdf
- Q: What core does MSPM0G3106SRHBR use?
- A: It uses an ARM Cortex-M0+ core running at up to 80MHz.
- Q: What is the supply voltage range?
- A: It operates from 1.62V to 3.6V, optimized for low-power designs.
- Q: How much Flash and RAM does it have?
- A: It has 64KB Flash and 32KB RAM, generous for complex applications.
- Q: Does it include a TRNG?
- A: Yes, it features a True Random Number Generator for security applications.
- Q: What is the package type?
- A: It comes in a 32-pin VFQFN exposed pad package.
