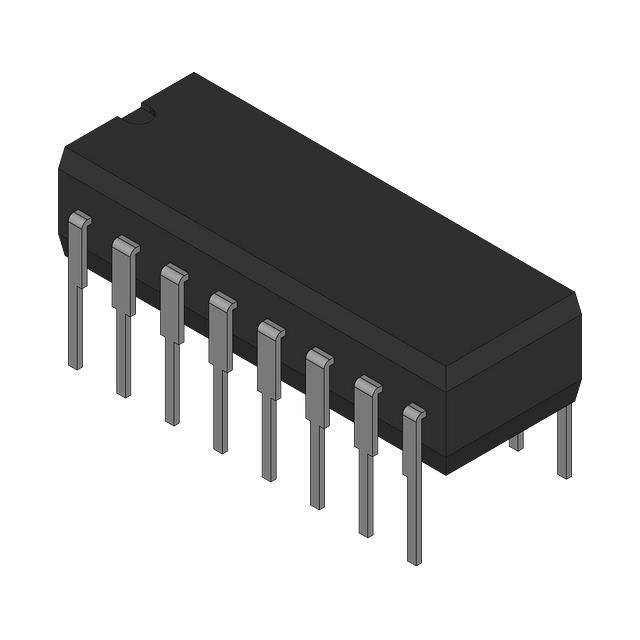

Analog Devices Inc. MUX24BQ
Regular price
$78.16
Regular price
$19.54
Sale price
$78.16
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $78.16 | $78.16 |
| 15+ | $17.98 | $269.70 |
| 25+ | $17.59 | $439.75 |
| 50+ | $16.61 | $830.50 |
| 100+ | $14.66 | $1,466.00 |
| N+ | $2.93 | Price Inquiry |
Shipping calculated at checkout.
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Analog Devices Inc. |
| Product Series | |
| Packaging | Bulk | |
| Switch Circuit | SP4T |
| Multiplexer/Demultiplexer Circuit | 4:1 |
| Number of Circuits | 2 |
| On-State Resistance (Max) | 400Ohm |
| Channel-to-Channel Matching (ΔRon) | 80Ohm |
| Voltage - Supply, Single (V+) | 15V |
| Voltage - Supply, Dual (V±) | ±15V |
| Switch Time (Ton, Toff) (Max) | 2µs, 600ns |
| -3db Bandwidth | - |
| Charge Injection | - |
| Channel Capacitance (CS(off), CD(off)) | 2.5pF, 7pF |
| Current - Leakage (IS(off)) (Max) | 2nA |
| Crosstalk | -70dB @ 500kHz |
| Operating Temperature | -55°C ~ 125°C |
| Grade | - |
| Qualification | - |
| Mounting Type | Through Hole |
| Package / Case | 16-CDIP (0.300", 7.62mm) |
| Supplier Device Package | 16-CDIP (0.300", 7.62mm) |
MUX24BQ.pdf
×
