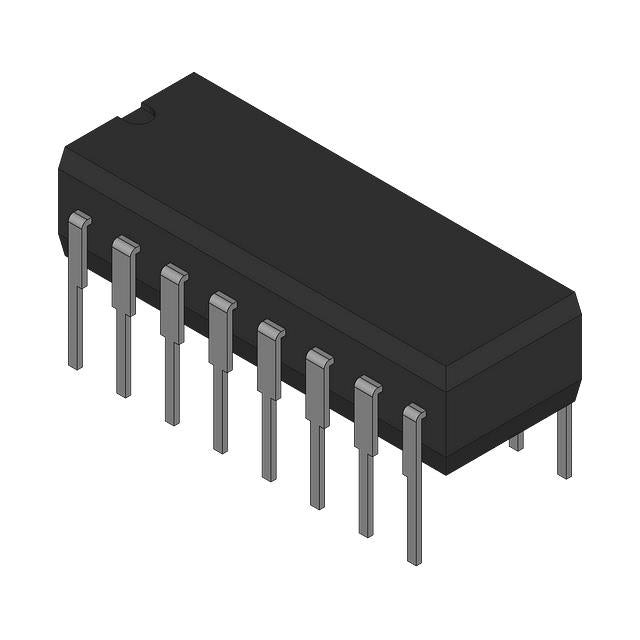

Analog Devices Inc. MUX24EQ
Regular price
Dhs. 39.11
Regular price
Dhs. 41.17
Sale price
Dhs. 39.11
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | Dhs. 39.11 | Dhs. 39.11 |
| 15+ | Dhs. 37.88 | Dhs. 568.20 |
| 25+ | Dhs. 37.05 | Dhs. 926.25 |
| 50+ | Dhs. 34.99 | Dhs. 1,749.50 |
| 100+ | Dhs. 30.88 | Dhs. 3,088.00 |
| N+ | Dhs. 6.18 | Price Inquiry |
Shipping calculated at checkout.
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Analog Devices Inc. |
| Product Series | |
| Packaging | Bulk | |
| Switch Circuit | SP4T |
| Multiplexer/Demultiplexer Circuit | 4:1 |
| Number of Circuits | 2 |
| On-State Resistance (Max) | 300Ohm |
| Channel-to-Channel Matching (ΔRon) | 45Ohm |
| Voltage - Supply, Single (V+) | 15V |
| Voltage - Supply, Dual (V±) | ±15V |
| Switch Time (Ton, Toff) (Max) | 2µs, 500ns |
| -3db Bandwidth | - |
| Charge Injection | - |
| Channel Capacitance (CS(off), CD(off)) | 2.5pF, 7pF |
| Current - Leakage (IS(off)) (Max) | 1nA |
| Crosstalk | -70dB @ 500kHz |
| Operating Temperature | -25°C ~ 85°C |
| Grade | - |
| Qualification | - |
| Mounting Type | Through Hole |
| Package / Case | 16-CDIP (0.300", 7.62mm) |
| Supplier Device Package | 16-CDIP (0.300", 7.62mm) |
MUX24EQ.pdf
×
