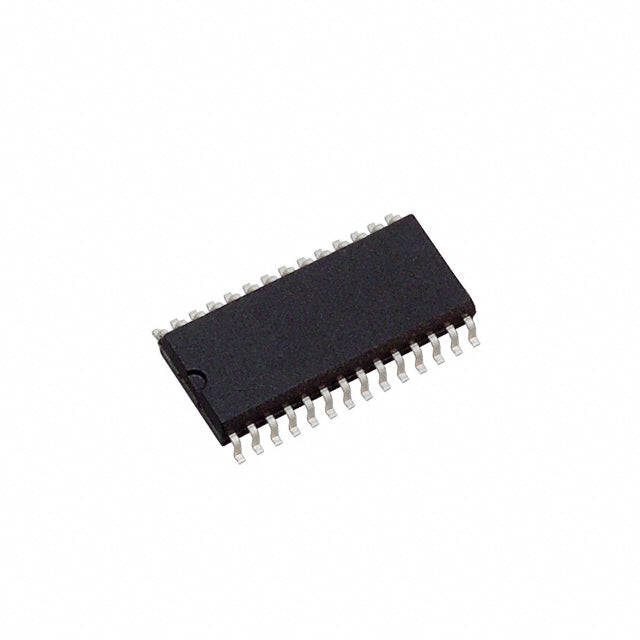

Texas Instruments MUX506IDWR
Regular price
$6.12
Regular price
$6.44
Sale price
$6.12
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $6.12 | $6.12 |
| 15+ | $5.92 | $88.80 |
| 25+ | $5.80 | $145.00 |
| 50+ | $5.47 | $273.50 |
| 100+ | $4.83 | $483.00 |
| N+ | $0.97 | Price Inquiry |
Shipping calculated at checkout.
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Texas Instruments |
| Product Series | |
| Packaging | Cut Tape (CT) | Tape & Reel (TR) |
| Switch Circuit | - |
| Multiplexer/Demultiplexer Circuit | 16:1 |
| Number of Circuits | 1 |
| On-State Resistance (Max) | 200Ohm |
| Channel-to-Channel Matching (ΔRon) | 6Ohm |
| Voltage - Supply, Single (V+) | 10V ~ 36V |
| Voltage - Supply, Dual (V±) | ±5V ~ 18V |
| Switch Time (Ton, Toff) (Max) | 136ns, 78ns |
| -3db Bandwidth | - |
| Charge Injection | 0.67pC |
| Channel Capacitance (CS(off), CD(off)) | 3pF, 12.2pF |
| Current - Leakage (IS(off)) (Max) | 1nA |
| Crosstalk | -96dB @ 1MHz |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | 28-SOIC (0.295", 7.50mm Width) |
| Supplier Device Package | 28-SOIC (0.295", 7.50mm Width) |
| ROHS |  |
No datasheet available. Please contact sales@hqickey.com for the latest datasheet.
×
