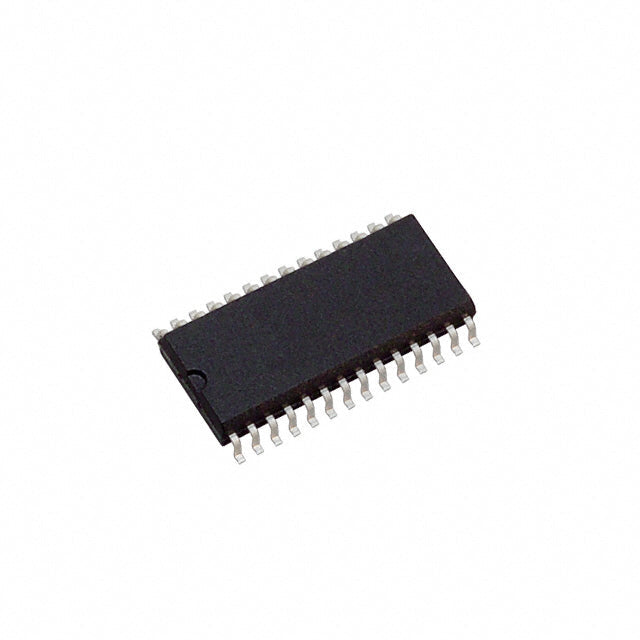

Texas Instruments MUX507IDWR
Regular price
$6.40
Regular price
$6.74
Sale price
$6.40
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $6.40 | $6.40 |
| 15+ | $6.20 | $93.00 |
| 25+ | $6.07 | $151.75 |
| 50+ | $5.73 | $286.50 |
| 100+ | $5.06 | $506.00 |
| N+ | $1.01 | Price Inquiry |
Shipping calculated at checkout.
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Texas Instruments |
| Product Series | |
| Packaging | Cut Tape (CT) | Tape & Reel (TR) |
| Switch Circuit | - |
| Multiplexer/Demultiplexer Circuit | 8:1 |
| Number of Circuits | 2 |
| On-State Resistance (Max) | 200Ohm |
| Channel-to-Channel Matching (ΔRon) | 6Ohm |
| Voltage - Supply, Single (V+) | 10V ~ 36V |
| Voltage - Supply, Dual (V±) | ±5V ~ 18V |
| Switch Time (Ton, Toff) (Max) | 136ns, 78ns |
| -3db Bandwidth | - |
| Charge Injection | 0.67pC |
| Channel Capacitance (CS(off), CD(off)) | 3pF, 7.5pF |
| Current - Leakage (IS(off)) (Max) | 1nA |
| Crosstalk | -96dB @ 1MHz |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | 28-SOIC (0.295", 7.50mm Width) |
| Supplier Device Package | 28-SOIC (0.295", 7.50mm Width) |
| ROHS |  |
No datasheet available. Please contact sales@hqickey.com for the latest datasheet.
×
