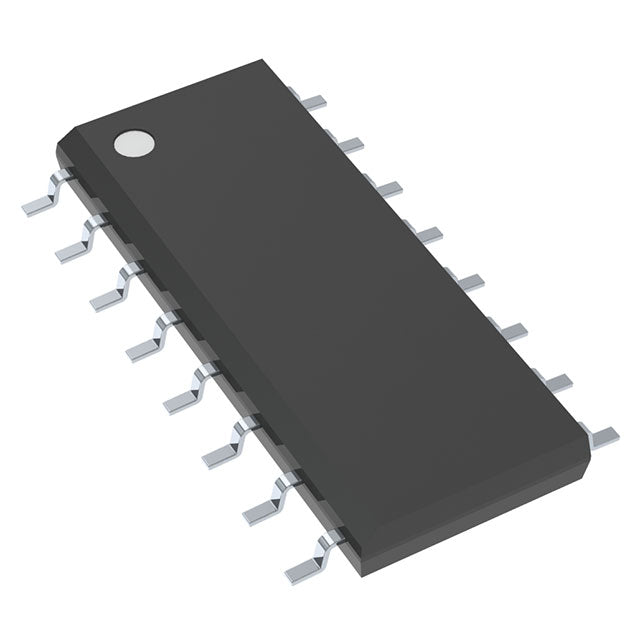

Texas Instruments MUX509ID
Regular price
$3.99
Regular price
$4.20
Sale price
$3.99
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $3.99 | $3.99 |
| 15+ | $3.86 | $57.90 |
| 25+ | $3.78 | $94.50 |
| 50+ | $3.57 | $178.50 |
| 100+ | $3.15 | $315.00 |
| N+ | $0.63 | Price Inquiry |
Shipping calculated at checkout.
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Texas Instruments |
| Product Series | |
| Packaging | Tube | |
| Switch Circuit | SP4T |
| Multiplexer/Demultiplexer Circuit | 4:1 |
| Number of Circuits | 2 |
| On-State Resistance (Max) | 170Ohm |
| Channel-to-Channel Matching (ΔRon) | 2.4Ohm |
| Voltage - Supply, Single (V+) | 10V ~ 36V |
| Voltage - Supply, Dual (V±) | ±5V ~ 18V |
| Switch Time (Ton, Toff) (Max) | 136ns, 75ns |
| -3db Bandwidth | - |
| Charge Injection | 0.3pC |
| Channel Capacitance (CS(off), CD(off)) | 2.4pF, 4.3pF |
| Current - Leakage (IS(off)) (Max) | 1nA |
| Crosstalk | -96dB @ 1MHz |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | 16-SOIC (0.154", 3.90mm Width) |
| Supplier Device Package | 16-SOIC (0.154", 3.90mm Width) |
| ROHS |  |
No datasheet available. Please contact sales@hqickey.com for the latest datasheet.
×
