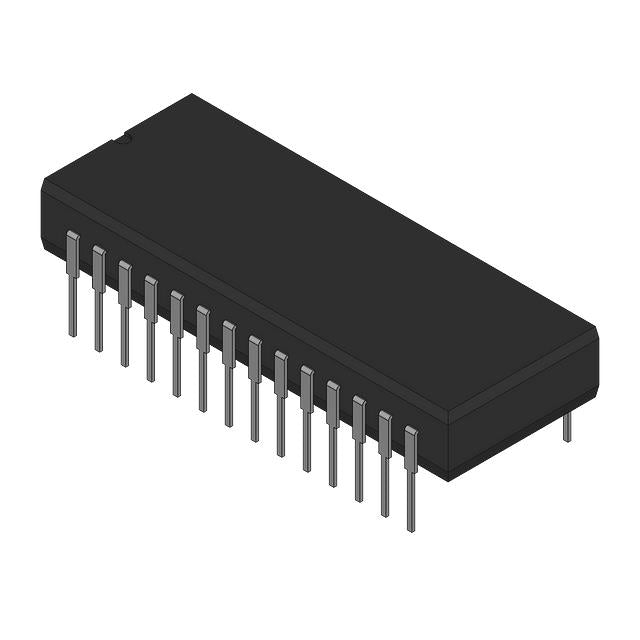

Analog Devices Inc./Maxim Integrated MX574ASQ
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $546.24 | $546.24 |
| 15+ | $125.64 | $1,884.60 |
| 25+ | $122.90 | $3,072.50 |
| 50+ | $116.08 | $5,804.00 |
| 100+ | $102.42 | $10,242.00 |
| N+ | $20.48 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Analog Devices Inc./Maxim Integrated |
| Product Series | |
| Packaging | Bulk | |
| Number of Bits | 12 |
| Sampling Rate (Per Second) | - |
| Number of Inputs | 1 |
| Input Type | Single Ended |
| Data Interface | Parallel |
| Configuration | S/H-ADC |
| Ratio - S/H:ADC | 1:1 |
| Number of A/D Converters | 1 |
| Architecture | SAR |
| Reference Type | External, Internal |
| Voltage - Supply, Analog | -11.4V ~ -15.75V, 4.75V ~ 5.25V |
| Voltage - Supply, Digital | -11.4V ~ -15.75V, 4.75V ~ 5.25V |
| Features | - |
| Operating Temperature | -55°C ~ 125°C |
| Mounting Type | Through Hole |
| Grade | - |
| Qualification | - |
| Package / Case | 28-CDIP (0.600", 15.24mm) |
| Supplier Device Package | 28-CERDIP |
The MX574ASQ from Analog Devices Inc./Maxim Integrated is a robust 12-bit analog-to-digital converter designed for extreme environments. It features a single input channel and a parallel interface for efficient data transfer. With both external and internal reference options, it offers design flexibility. Its S/H-ADC architecture ensures accurate signal sampling. Housed in a rugged 28-CDIP package, it operates reliably across a wide temperature range of -55°C to 125°C, making it ideal for military, aerospace, and industrial applications.
- Extreme Temperature Range: Operates from -55°C to 125°C, ensuring reliable performance in the harshest environments.
- Flexible Reference: Supports both external and internal references, providing design versatility for various accuracy requirements.
- Rugged Package: The hermetic 28-CDIP package offers superior protection against moisture and mechanical stress.
- Proven 12-Bit Accuracy: Delivers consistent 12-bit resolution for precise measurements in critical applications.
Military & Aerospace Systems
The MX574ASQ's extended temperature range of -55°C to 125°C and hermetically sealed CDIP package make it suitable for military and aerospace applications requiring high reliability in extreme conditions.
High-Precision Measurement
With 12-bit resolution and flexible reference options, this ADC is ideal for precision measurement instruments like digital multimeters and calibration equipment where accuracy is critical.
Industrial Process Control
The parallel interface allows for fast data transfer to PLCs and industrial controllers, making the MX574ASQ a robust choice for process control loops in harsh factory environments.
Medical Instrumentation
Its wide operating temperature range and reliable performance make it suitable for medical devices that must operate consistently in various clinical settings.
Data Acquisition in Extreme Environments
The device's ability to operate from -55°C to 125°C makes it perfect for data acquisition systems used in oil exploration, deep-sea monitoring, and other extreme environment applications.
- Q: What is the resolution of the MX574ASQ?
- A: The MX574ASQ is a 12-bit analog-to-digital converter.
- Q: How many channels does the MX574ASQ have?
- A: It has a single (1) input channel.
- Q: What interface does the MX574ASQ use?
- A: It uses a Parallel interface.
- Q: What is the architecture of the MX574ASQ?
- A: It uses a S/H-ADC (Sample and Hold) architecture.
- Q: What reference options are available?
- A: It supports both External and Internal references.
- Q: What is the package type?
- A: It comes in a 28-CDIP (0.600", 15.24mm) package.
