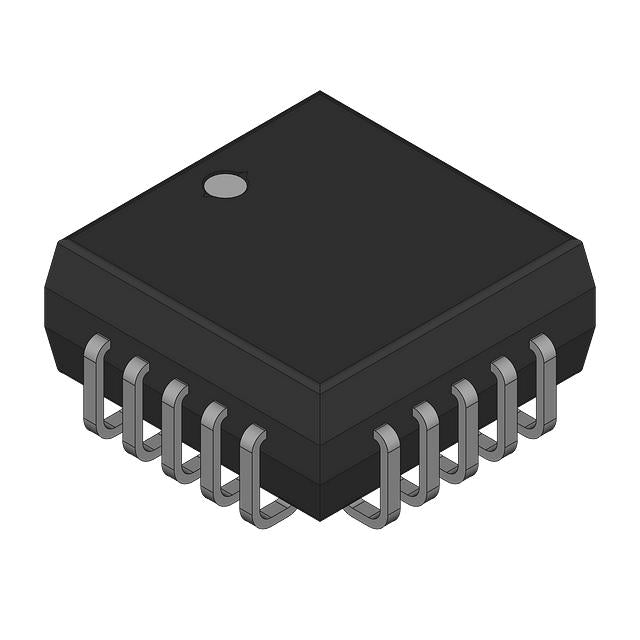

Analog Devices Inc./Maxim Integrated MX7524JP
Regular price
$16.68
Regular price
$4.17
Sale price
$16.68
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $16.68 | $16.68 |
| 15+ | $3.84 | $57.60 |
| 25+ | $3.75 | $93.75 |
| 50+ | $3.54 | $177.00 |
| 100+ | $3.13 | $313.00 |
| N+ | $0.63 | Price Inquiry |
Shipping calculated at checkout.
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Analog Devices Inc./Maxim Integrated |
| Product Series | |
| Packaging | Bulk | |
| Number of Bits | 8 |
| Number of D/A Converters | 1 |
| Settling Time | 350ns |
| Output Type | Current - Unbuffered |
| Differential Output | Yes |
| Data Interface | Parallel |
| Reference Type | External |
| Voltage - Supply, Analog | 4.5V ~ 5.5V, 10.8V ~ 13.2V, 13.5V ~ 16.5V |
| Voltage - Supply, Digital | 4.5V ~ 5.5V, 10.8V ~ 13.2V, 13.5V ~ 16.5V |
| INL/DNL (LSB) | ±0.5 (Max), ±1 (Max) |
| Architecture | Multiplying DAC, R-2R |
| Operating Temperature | - |
| Mounting Type | Surface Mount |
| Grade | - |
| Qualification | - |
| Package / Case | 20-LCC (J-Lead) |
| Supplier Device Package | 20-PLCC (9x9) |
MX7524JP.pdf
×
