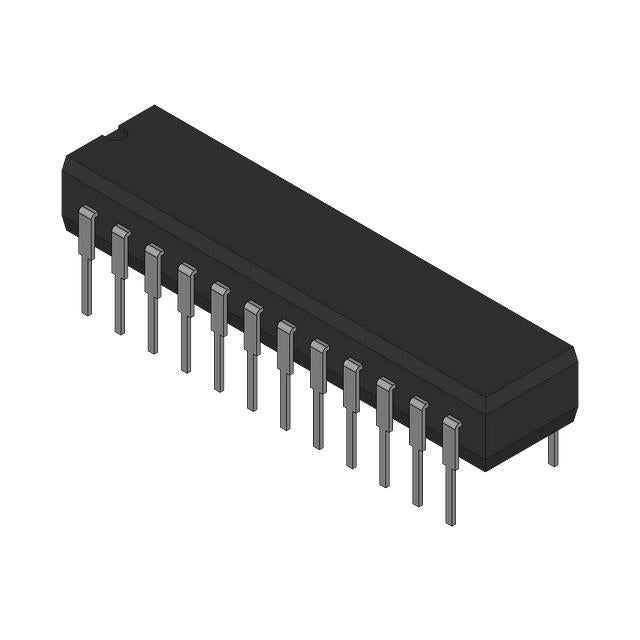

Analog Devices Inc./Maxim Integrated MX7572JN12
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $88.04 | $88.04 |
| 15+ | $20.25 | $303.75 |
| 25+ | $19.81 | $495.25 |
| 50+ | $18.71 | $935.50 |
| 100+ | $16.51 | $1,651.00 |
| N+ | $3.30 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Analog Devices Inc./Maxim Integrated |
| Product Series | |
| Packaging | Bulk | |
| Number of Bits | 12 |
| Sampling Rate (Per Second) | 308k |
| Number of Inputs | 1 |
| Input Type | Single Ended |
| Data Interface | Parallel |
| Configuration | MUX-ADC |
| Ratio - S/H:ADC | 0:1 |
| Number of A/D Converters | 1 |
| Architecture | SAR |
| Reference Type | Internal |
| Voltage - Supply, Analog | 4.75V ~ 5.25V |
| Voltage - Supply, Digital | 4.75V ~ 5.25V |
| Features | - |
| Operating Temperature | 0°C ~ 70°C |
| Mounting Type | Through Hole |
| Grade | - |
| Qualification | - |
| Package / Case | 24-DIP (0.300", 7.62mm) |
| Supplier Device Package | 24-PDIP |
The MX7572JN12 is a 12-bit analog-to-digital converter from Analog Devices/Maxim Integrated, designed for a wide range of data conversion applications. It offers a sampling rate of 308 kSPS and features a single input channel. The device uses a parallel interface and includes an internal reference, simplifying system design. Housed in a 24-DIP package, it is easy to integrate into both new designs and existing through-hole PCB layouts. This ADC is suitable for industrial, test, and audio applications.
- Simple Parallel Interface: The parallel output simplifies connection to microprocessors and DSPs, reducing software overhead.
- Internal Reference: The built-in reference eliminates the need for external components, saving board space and reducing system cost.
- Through-Hole Package: The 24-DIP package is easy to solder and ideal for prototyping and educational use.
- Proven Reliability: From Analog Devices/Maxim Integrated, this ADC offers a reliable and well-documented solution for many applications.
Legacy Industrial Control Systems
The MX7572JN12 with its parallel interface and 12-bit resolution is suitable for upgrading or maintaining legacy industrial control systems that require a direct replacement for older ADC components.
Embedded Data Acquisition
With a sampling rate of 308 kSPS, this ADC can be used in embedded data acquisition systems for digitizing analog signals in robotics, automation, and process monitoring.
Test and Measurement Equipment
The 12-bit resolution and parallel output make the MX7572 ideal for test and measurement equipment such as digital multimeters and oscilloscopes, where fast and accurate data conversion is required.
Audio Signal Processing
This ADC can be used in audio processing applications, such as mixing consoles and effects processors, where 12-bit resolution and a 308 kSPS sampling rate are sufficient for high-quality audio digitization.
Educational and Hobbyist Projects
The through-hole 24-DIP package makes the MX7572 easy to use in breadboards and prototyping, making it a good choice for educational projects and hobbyist electronics.
Battery-Powered Devices
With an internal reference and a 0°C to 70°C temperature range, this ADC is suitable for battery-powered devices that require low power consumption and reliable performance in typical operating conditions.
