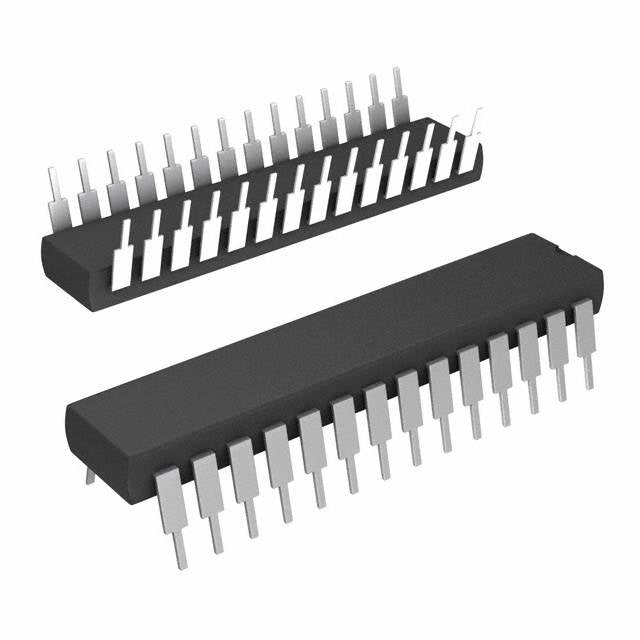

Image shown is a representation only. Exact specifications should be obtained from the product data sheet.
Analog Devices Inc./Maxim Integrated
MX7581LN+
MX7581LN+
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | Dhs. 182.48 AED | Dhs. 182.48 AED |
| 15+ | Dhs. 176.70 AED | Dhs. 2,650.50 AED |
| 25+ | Dhs. 172.86 AED | Dhs. 4,321.50 AED |
| 50+ | Dhs. 163.26 AED | Dhs. 8,163.00 AED |
| 100+ | Dhs. 144.05 AED | Dhs. 14,405.00 AED |
| N+ | Dhs. 28.81 AED | Price Inquiry |
Couldn't load pickup availability
Apply for PCBA engineering assistance
MX7581LN+ - 8-Bit Data Acquisition System IC
The MX7581LN+ from Analog Devices Inc./Maxim Integrated is a high-performance 8-channel, 8-bit Data Acquisition System (DAS) designed for precision analog-to-digital conversion applications. With a 15kSPS sampling rate and parallel data interface, this IC delivers reliable performance for industrial, instrumentation, and embedded system designs requiring multi-channel data acquisition.
Key Features & Benefits
- 8-Channel Architecture: Simultaneous monitoring of multiple analog signals
- 15kSPS Sampling Rate: Fast conversion for real-time data acquisition
- Single Supply Operation: Simplified power design with 4.5V to 5.5V range
- Parallel Interface: High-speed data transfer for embedded systems
- Through-Hole 28-DIP Package: Easy prototyping and reliable PCB mounting
- Wide Operating Temperature: 0°C to 70°C for commercial applications
- RoHS Compliant: Meets environmental standards for global distribution
Applications
Ideal for industrial control systems, process monitoring, multi-channel sensor interfaces, automated test equipment, medical instrumentation, and embedded data logging applications requiring reliable 8-bit resolution analog input conversion.
Authorized Distribution & Quality Assurance
As an authorized distributor, we provide 100% authentic components with full manufacturer traceability, original packaging, and comprehensive compliance documentation including RoHS/REACH certification. Every unit is backed by our quality guarantee and long lifecycle commitment.
Complete Technical Specifications
| Product attributes | Property Value |
| Manufacturer | Analog Devices Inc./Maxim Integrated |
| Product Series | |
| Packaging | Tube | |
| Type | Data Acquisition System (DAS) |
| Number of Channels | 8 |
| Resolution (Bits) | 8 b |
| Sampling Rate (Per Second) | 15k |
| Data Interface | Parallel |
| Voltage Supply Source | Single Supply |
| Voltage - Supply | 4.5V ~ 5.5V |
| Operating Temperature | 0°C ~ 70°C |
| Mounting Type | Through Hole |
| Grade | - |
| Qualification | - |
| Package / Case | 28-DIP (0.600", 15.24mm) |
| Supplier Device Package | 28-PDIP |
| ROHS |  |
Datasheets:
MX7581LN+.pdf
