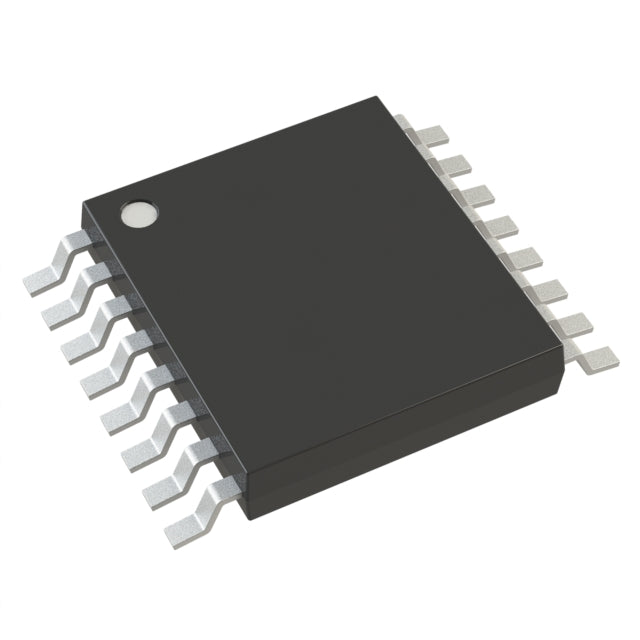

onsemi NB3N3002DTR2G
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $6.16 | $6.16 |
| 15+ | $5.96 | $89.40 |
| 25+ | $5.83 | $145.75 |
| 50+ | $5.51 | $275.50 |
| 100+ | $4.86 | $486.00 |
| N+ | $0.97 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | onsemi |
| Product Series | |
| Packaging | Factory | Cut Tape (CT) |
| Type | Clock Generator |
| PLL | Yes |
| Input | Clock, Crystal |
| Output | HCSL, LVDS |
| Number of Circuits | 1 |
| Ratio - Input:Output | 1:1 |
| Differential - Input:Output | No/Yes |
| Frequency - Max | 200MHz |
| Divider/Multiplier | No/Yes |
| Voltage - Supply | 3.135V ~ 3.465V |
| Operating Temperature | -40°C ~ 85°C |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | 16-TSSOP (0.173", 4.40mm Width) |
| Supplier Device Package | 16-TSSOP |
| ROHS |  |
The NB3N3002DTR2G is a Clock Generator from onsemi, designed for high-performance timing applications. It features a single circuit with Clock or Crystal inputs and provides HCSL or LVDS outputs at frequencies up to 200MHz. The integrated PLL ensures low-jitter clock generation. Packaged in a 16-TSSOP, it operates from -40°C to 85°C, making it ideal for PCIe, networking, and server applications.
- Low Jitter PLL: Ensures clean clock signals for high-speed interfaces like PCIe.
- Differential Outputs: HCSL and LVDS options provide excellent noise immunity.
- Flexible Inputs: Accepts Clock or Crystal for design versatility.
- Compact TSSOP Package: 16-pin package saves board space while providing robust performance.
PCIe Clock Generation
Generate reference clocks for PCIe interfaces using HCSL outputs, ensuring low jitter for high-speed data transfer.
Networking Switches
Provide precise timing for Ethernet switches and routers, using LVDS outputs for differential signaling.
Server Motherboards
Deliver clean clocks for CPU and memory subsystems, supporting reliable operation in data centers.
Storage Systems
Generate clocks for SAS/SATA controllers, ensuring data integrity in enterprise storage.
FPGA Clocking
Supply low-jitter clocks to FPGAs for high-speed logic designs, using crystal input for stability.
Broadband Communications
Provide timing for cable modems and DSL equipment, supporting high-bandwidth applications.
- Q: What type of device is the NB3N3002DTR2G?
- A: It is a Clock Generator from onsemi.
- Q: Does it have a PLL?
- A: Yes, it includes a PLL for clock generation.
- Q: What are the input and output types?
- A: It accepts Clock or Crystal inputs and provides HCSL or LVDS outputs.
- Q: How many circuits does it have?
- A: It has 1 circuit.
- Q: What is the maximum frequency?
- A: The maximum frequency is 200MHz.
- Q: What is the package and temperature range?
- A: It comes in a 16-TSSOP package and operates from -40°C to 85°C.
