onsemi NC7SV17FHX
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $1.04 | $1.04 |
| 15+ | $0.22 | $3.30 |
| 25+ | $0.22 | $5.50 |
| 50+ | $0.20 | $10.00 |
| 100+ | $0.18 | $18.00 |
| N+ | $0.04 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | onsemi |
| Product Series | 7SV |
| Packaging | Tape & Reel (TR) | |
| Part Status | Obsolete |
| Logic Type | Buffer, Non-Inverting |
| Number of Elements | 1 |
| Number of Bits per Element | 1 |
| Input Type | Schmitt Trigger |
| Output Type | Push-Pull |
| Current - Output High, Low | 24mA, 24mA |
| Voltage - Supply | 0.9V ~ 3.6V |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |

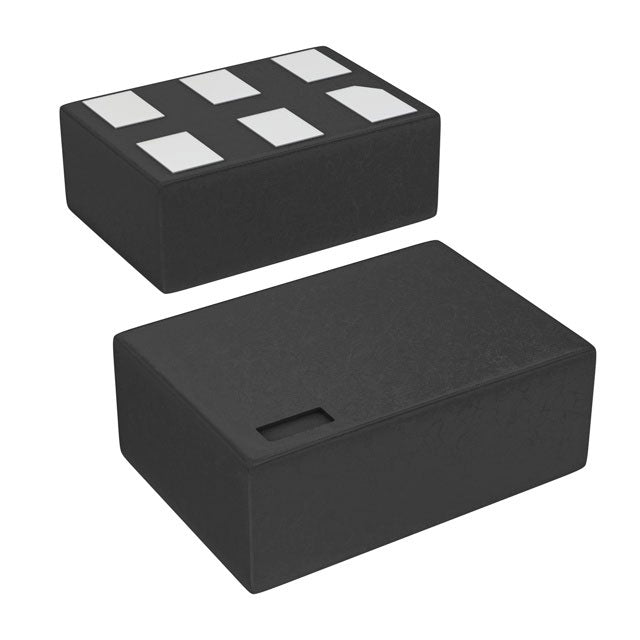

| Package / Case | 6-UFDFN |
| Supplier Device Package | 6-MicroPak2™ |
| ROHS |  |
The NC7SV17FHX from Fairchild Semiconductor is a single non-inverting buffer in the 7SV ultra-low-voltage CMOS logic family. It features one buffer channel with a push-pull output, providing strong drive capability. The device operates from 0.9V to 3.6V, making it suitable for low-voltage battery-powered systems. The output can sink or source 24mA, allowing direct drive of LEDs and other loads. The 6-pin UFDFN package is extremely compact, ideal for space-constrained designs. This buffer is commonly used in portable electronics, wearables, and IoT devices.
- Ultra-Low Voltage Operation (0.9V-3.6V): Extends battery life in portable devices.
- High Output Current (24mA): Can drive LEDs and other loads directly.
- Push-Pull Output: Provides clean, fast signal transitions.
- Compact UFDFN Package: Minimizes PCB footprint for wearables and IoT.
Ultra-Low-Voltage Signal Buffering
The NC7SV17FHX operates from 0.9V to 3.6V, making it ideal for next-generation low-voltage ICs. It can buffer signals from 1.8V or 2.5V logic without level-shifting issues.
Driving High-Current Loads
With a 24mA output current capability, this buffer can drive LEDs, relays, or other loads directly, eliminating the need for external driver transistors in low-power applications.
Clock Signal Distribution
The push-pull output provides clean, fast transitions, making this buffer suitable for distributing clock signals to multiple loads in portable devices.
Battery-Powered Sensor Interfacing
In battery-powered sensors, the NC7SV17FHX can buffer the sensor output signal before it reaches the microcontroller, ensuring signal integrity while consuming minimal power.
Portable Audio and Display Interfaces
For portable audio codecs or display drivers, this buffer can condition control signals, ensuring reliable operation at low voltages.
FPGA Configuration and Programming
For low-voltage FPGAs, this buffer can interface with configuration memory or external controllers, providing clean signal buffering without voltage mismatch issues.
- Q: What is the logic family of the NC7SV17FHX?
- A: It belongs to the 7SV (ultra-low-voltage CMOS) logic family.
- Q: What is the function of this IC?
- A: It is a single (1-channel) non-inverting buffer with push-pull outputs.
- Q: How many channels does it have?
- A: It has 1 independent buffer channel.
- Q: What is the output type?
- A: The output is push-pull, providing strong drive in both high and low states.
- Q: What is the operating voltage range?
- A: It operates from 0.9V to 3.6V, making it ideal for low-voltage portable devices.
- Q: What package is available?
- A: It comes in a 6-pin UFDFN package.
