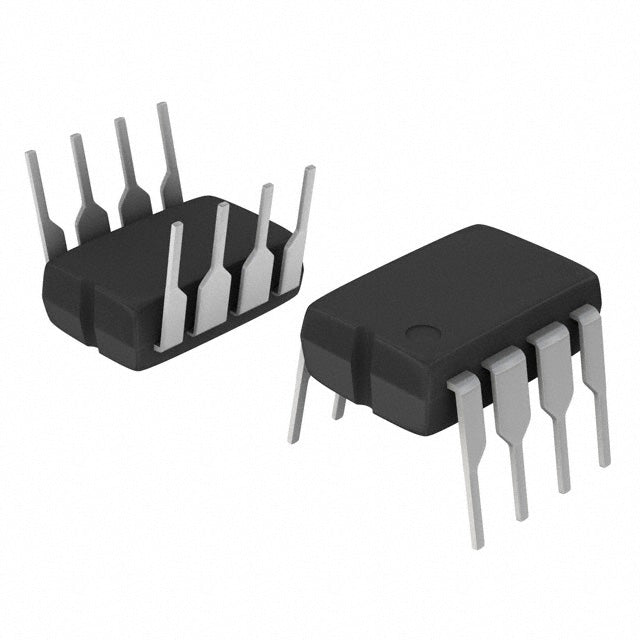

Image shown is a representation only. Exact specifications should be obtained from the product data sheet.
NCP1001PG
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | Dhs. 355,897.19 AED | Dhs. 355,897.19 AED |
| 15+ | Dhs. 344,658.33 AED | Dhs. 5,169,874.95 AED |
| 25+ | Dhs. 337,165.76 AED | Dhs. 8,429,144.00 AED |
| 50+ | Dhs. 318,434.33 AED | Dhs. 15,921,716.50 AED |
| 100+ | Dhs. 280,971.47 AED | Dhs. 28,097,147.00 AED |
| N+ | Dhs. 56,194.29 AED | Price Inquiry |
Couldn't load pickup availability
NCP1001PG Offline Switching Controller IC
The NCP1001PG from onsemi is a high-performance offline switching controller designed for AC/DC power supply applications. This versatile IC supports both flyback and forward topologies, making it ideal for a wide range of isolated power conversion designs.
Key Features
- 700V Breakdown Voltage - Robust high-voltage capability for reliable operation
- Dual Topology Support - Compatible with flyback and forward converter designs
- 100kHz Switching Frequency - Efficient power conversion with reduced component size
- Integrated Protection - Current limiting and over-temperature fault protection
- Wide Operating Range - Functions from -40°C to 125°C junction temperature
- 8.5V Start-Up Voltage - Low start-up requirements for efficient operation
Applications
Perfect for offline power supplies, AC/DC adapters, battery chargers, and industrial power conversion systems requiring isolated output with built-in protection features.
All specifications are subject to change. Please refer to the manufacturer's datasheet for complete technical details and application guidelines.
Related Products & Resources
Explore our complete range of AC DC Converters, Offline Switchers for more power conversion solutions. Visit our homepage to browse our full catalog of electronic components, or check out our technical blog for application notes, design guides, and industry insights.
| Product attributes | Property Value |
| Manufacturer | onsemi |
| Product Series | |
| Packaging | | |
| Output Isolation | Isolated |
| Internal Switch(s) | Yes |
| Voltage - Breakdown | 700V |
| Topology | Flyback, Forward |
| Voltage - Start Up | 8.5 V |
| Voltage - Supply (Vcc/Vdd) | 7.5V ~ 10V |
| Duty Cycle | 72% |
| Frequency - Switching | 100kHz |
| Power (Watts) | - |
| Fault Protection | Current Limiting, Over Temperature |
| Control Features | - |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Grade | - |
| Qualification | - |
| Mounting Type | Through Hole |
| Package / Case | 8-DIP (0.300", 7.62mm) |
| Supplier Device Package | 8-PDIP |
NCP1001PG.pdf
