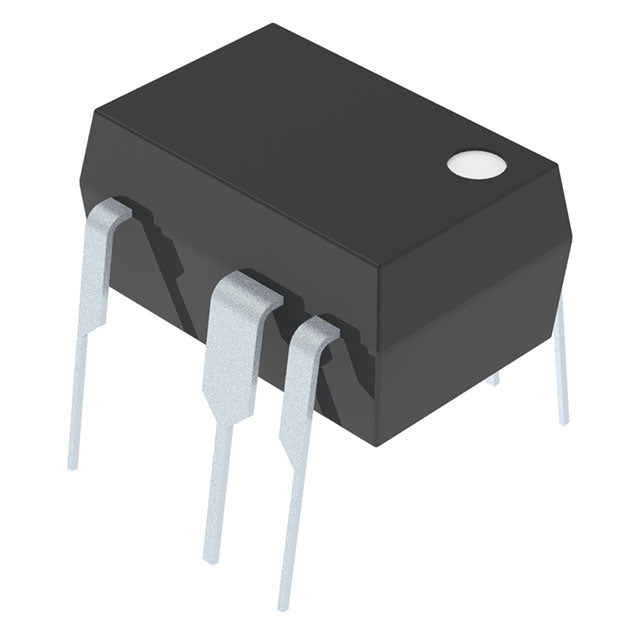

NCP1011AP065 - High-Performance Offline Switching IC
The NCP1011AP065 from onsemi is a robust, isolated flyback switching IC designed for AC/DC offline power conversion applications up to 19W. Featuring a 700V breakdown voltage and integrated 65kHz switching frequency, this controller delivers reliable performance in compact, cost-effective power supply designs.
Key Features
- Isolated Flyback Topology: Ideal for universal AC input applications requiring galvanic isolation
- 700V High-Voltage Breakdown: Ensures safe operation with wide input voltage ranges
- 65kHz Fixed Switching Frequency: Optimized for low EMI and efficient transformer design
- 19W Power Capability: Perfect for low-to-medium power adapters, chargers, and auxiliary supplies
- Integrated Protection: Over-load, over-temperature, and over-voltage fault protection for enhanced reliability
- Wide Operating Temperature: -40°C to 150°C (TJ) for industrial and automotive-grade applications
- Through-Hole 7-PDIP Package: Easy assembly and prototyping with standard DIP footprint
Applications
- AC/DC adapters and chargers
- Auxiliary power supplies for industrial equipment
- Standby power for consumer electronics
- LED driver circuits
- Smart home and IoT device power
Why Choose NCP1011AP065?
Engineered for mission-critical reliability, the NCP1011AP065 integrates essential protection features and a proven flyback architecture to minimize external component count and design complexity. Its 67% duty cycle and 8.5V to 10V supply voltage range make it versatile for a wide array of offline power conversion needs.
Backed by onsemi's commitment to quality and long lifecycle support, this IC is an excellent choice for aerospace, automotive, industrial, medical, and telecommunications applications where durability and traceability are paramount.
| Product attributes | Property Value |
| Manufacturer | onsemi |
| Product Series | |
| Packaging | Tube | |
| Output Isolation | Isolated |
| Internal Switch(s) | Yes |
| Voltage - Breakdown | 700V |
| Topology | Flyback |
| Voltage - Start Up | - |
| Voltage - Supply (Vcc/Vdd) | 8.5V ~ 10V |
| Duty Cycle | 67% |
| Frequency - Switching | 65kHz |
| Power (Watts) | 19 W |
| Fault Protection | Over Load, Over Temperature, Over Voltage |
| Control Features | - |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Grade | - |
| Qualification | - |
| Mounting Type | Through Hole |
| Package / Case | 8-DIP (0.300", 7.62mm), 7 Leads |
| Supplier Device Package | 7-PDIP |
