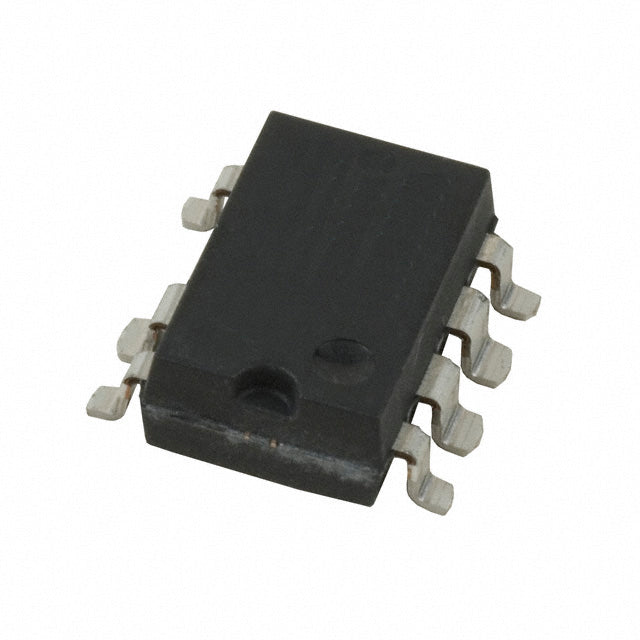

onsemi NCP1014APL065R2G
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | Dhs. 1.91 | Dhs. 1.91 |
| 15+ | Dhs. 1.86 | Dhs. 27.90 |
| 25+ | Dhs. 1.82 | Dhs. 45.50 |
| 50+ | Dhs. 1.72 | Dhs. 86.00 |
| 100+ | Dhs. 1.52 | Dhs. 152.00 |
| N+ | Dhs. 0.30 | Price Inquiry |
Request Quote / Inquiry
NCP1014APL065R2G - High-Reliability Offline Switching Regulator
The NCP1014APL065R2G from onsemi is a high-performance offline switching regulator IC designed for mission-critical power supply applications. This integrated controller features a 700V breakdown voltage rating and delivers up to 19W of power in an isolated flyback topology, making it ideal for aerospace, industrial, medical, and telecommunications equipment.
Key Features & Benefits
- High Voltage Capability: 700V breakdown voltage for robust performance in demanding applications
- Integrated Protection: Comprehensive fault protection including over-load, over-temperature, and over-voltage safeguards
- Wide Operating Range: Functions reliably from -40°C to 150°C (TJ) for extreme environments
- Efficient Design: 65kHz switching frequency with 67% duty cycle for optimized power conversion
- Space-Saving Package: Compact 7-PDIP gullwing surface mount configuration
- Isolated Output: Provides electrical isolation for enhanced safety and noise immunity
Applications
This switching regulator is engineered for use in AC/DC power supplies, auxiliary power systems, industrial control equipment, medical devices, and telecommunications infrastructure where long lifecycle availability and full traceability are essential.
Compliance & Quality: As an authorized distributor, we provide full traceability documentation and RoHS/REACH compliance certification with every order. This component is backed by onsemi's commitment to long lifecycle availability for critical design-in applications.
| Product attributes | Property Value |
| Manufacturer | onsemi |
| Product Series | |
| Packaging | Tape & Reel (TR) | |
| Output Isolation | Isolated |
| Internal Switch(s) | Yes |
| Voltage - Breakdown | 700V |
| Topology | Flyback |
| Voltage - Start Up | - |
| Voltage - Supply (Vcc/Vdd) | 8.5V ~ 10V |
| Duty Cycle | 67% |
| Frequency - Switching | 65kHz |
| Power (Watts) | 19 W |
| Fault Protection | Over Load, Over Temperature, Over Voltage |
| Control Features | - |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | 8-SMD (7 Leads), Gull Wing |
| Supplier Device Package | 7-PDIP, Gullwing |
NCP1014APL065R2G.pdf
