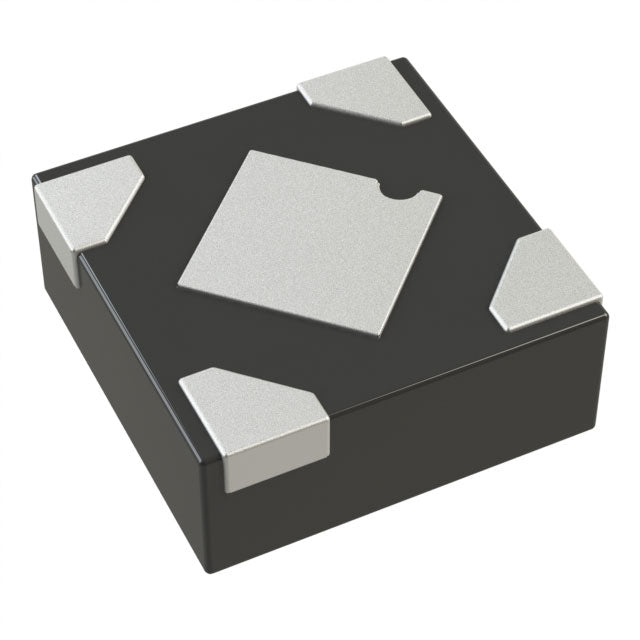

onsemi NCP110AMX110TBG
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $0.40 | $0.40 |
| 15+ | $0.09 | $1.35 |
| 25+ | $0.09 | $2.25 |
| 50+ | $0.09 | $4.50 |
| 100+ | $0.08 | $8.00 |
| N+ | $0.02 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | onsemi |
| Product Series | |
| Packaging | Bulk | |
| Output Configuration | Positive |
| Output Type | Fixed |
| Number of Regulators | 1 |
| Voltage - Input (Max) | 5.5V |
| Voltage - Output (Min/Fixed) | 1.1V |
| Voltage - Output (Max) | - |
| Voltage Dropout (Max) | - |
| Current - Output | 200mA |
| Current - Quiescent (Iq) | 25 µA |
| Current - Supply (Max) | - |
| PSRR | 95dB ~ 55dB (100Hz ~ 100kHz) |
| Control Features | Enable |
| Protection Features | Over Current, Over Temperature |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | 4-XDFN Exposed Pad |
| Supplier Device Package | 4-XDFN (1x1) |
| ROHS |  |
The NCP110AMX110TBG from onsemi is an ultra-low quiescent current LDO regulator providing a fixed 1.1V output. It supports up to 200mA of load current while drawing only 25µA of ground current. The device achieves exceptional PSRR of 95dB at 100Hz and 55dB at 100kHz, making it suitable for noise-sensitive RF and analog circuits. Housed in a miniature 4-XDFN (1x1) package, it is designed for space-constrained portable electronics.
- Ultra-Low Quiescent Current: 25µA Iq significantly extends battery life in portable devices.
- High PSRR: 95dB at 100Hz and 55dB at 100kHz ensures clean output across frequencies.
- Miniature Package: 1x1mm XDFN footprint saves critical board space in compact designs.
- Stable 1.1V Output: Ideal for low-voltage digital cores and analog front-ends.
Wearable Devices
Smartwatches and fitness trackers require ultra-low quiescent current to extend battery life. The NCP110's 25µA Iq and 200mA output are ideal for powering sensors and MCUs.
IoT Sensor Nodes
Wireless sensor nodes need clean, stable power for RF transceivers. With 95dB PSRR at 100Hz, this LDO effectively filters noise from switching regulators.
Smartphone Camera Modules
Image sensors operate at 1.1V with tight noise requirements. The compact 1x1mm XDFN package fits space-constrained camera modules while delivering clean power.
Hearing Aids and Medical Implants
Ultra-low power medical devices benefit from the 25µA quiescent current, maximizing battery life while maintaining stable output voltage.
Portable Audio Players
High-end audio requires low-noise supplies. The 95dB PSRR at low frequencies ensures hum-free operation, preserving audio fidelity.
Battery Management Systems
BMS circuits need precise voltage references. This LDO provides a stable 1.1V rail for analog front-ends, ensuring accurate battery monitoring.
- Q: What is the output voltage of the NCP110AMX110TBG?
- A: The fixed output voltage is 1.1V.
- Q: What is the maximum output current?
- A: It can deliver up to 200mA of output current.
- Q: What is the input voltage range?
- A: The input voltage range is not explicitly provided in the technical data; refer to the datasheet for absolute ratings.
- Q: What is the quiescent current?
- A: The quiescent current is very low at 25 µA, ideal for battery-powered applications.
- Q: What is the PSRR performance?
- A: PSRR is 95dB at 100Hz and 55dB at 100kHz, providing excellent noise rejection across a wide frequency range.
- Q: What package is available?
- A: It comes in a 4-XDFN (1x1) ultra-compact package.
