onsemi NCP1200AP100G
Regular price
Dhs. 3.33
Regular price
Dhs. 3.52
Sale price
Dhs. 3.33
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | Dhs. 3.33 | Dhs. 3.33 |
| 15+ | Dhs. 3.24 | Dhs. 48.60 |
| 25+ | Dhs. 3.17 | Dhs. 79.25 |
| 50+ | Dhs. 2.99 | Dhs. 149.50 |
| 100+ | Dhs. 2.64 | Dhs. 264.00 |
| N+ | Dhs. 0.53 | Price Inquiry |
Shipping calculated at checkout.
Request Quote / Inquiry
NCP1200AP100G - High-Performance Flyback PWM Controller IC
The NCP1200AP100G from onsemi is a high-reliability isolated flyback PWM controller IC designed for offline switching power supplies. Operating at 100kHz switching frequency with an 83% duty cycle, this controller delivers robust performance for industrial, telecom, and power management applications requiring long lifecycle support and full traceability.
Key Features & Benefits
- Isolated Flyback Topology - Provides safe galvanic isolation between input and output
- 100kHz Switching Frequency - Enables compact transformer design and reduced EMI
- Comprehensive Fault Protection - Current limiting, overload, and short circuit protection ensure system reliability
- Wide Operating Temperature Range - 0°C to 125°C (TJ) for demanding environments

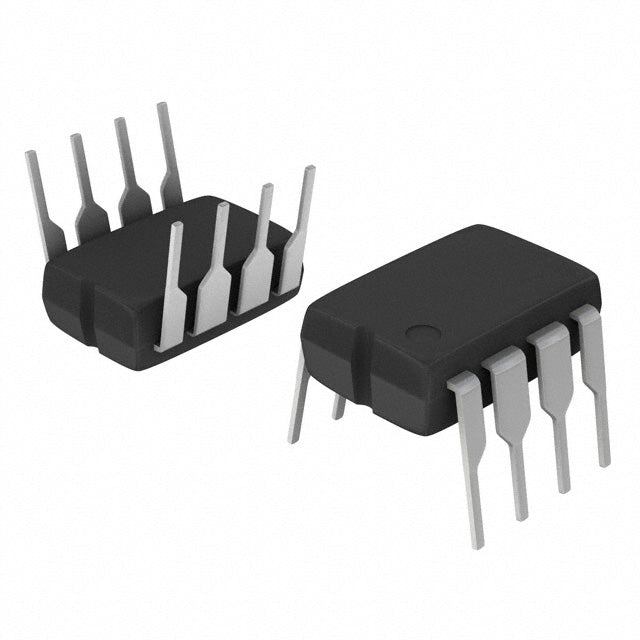

- Through-Hole 8-DIP Package - Easy assembly and rework for prototyping and production
- RoHS & REACH Compliant - Meets global environmental standards with full traceability
Typical Applications
- Offline AC-DC power supplies
- Industrial control systems
- Telecom and networking equipment
- Auxiliary power modules
- Battery chargers
Quality Assurance: All products are sourced directly from authorized distributors with full manufacturer traceability, original packaging, and compliance documentation (RoHS/REACH). Long lifecycle commitment ensures availability for design-in and production continuity.
| Product attributes | Property Value |
| Manufacturer | onsemi |
| Product Series | |
| Packaging | Tube | |
| Output Isolation | Isolated |
| Internal Switch(s) | No |
| Voltage - Breakdown | - |
| Topology | Flyback |
| Voltage - Start Up | - |
| Voltage - Supply (Vcc/Vdd) | 16V (Max) |
| Duty Cycle | 83% |
| Frequency - Switching | 100kHz |
| Power (Watts) | - |
| Fault Protection | Current Limiting, Over Load, Short Circuit |
| Control Features | - |
| Operating Temperature | 0°C ~ 125°C (TJ) |
| Grade | - |
| Qualification | - |
| Mounting Type | Through Hole |
| Package / Case | 8-DIP (0.300", 7.62mm) |
| Supplier Device Package | 8-PDIP |
NCP1200AP100G.pdf
×
