onsemi NCP1200AP40
Regular price
Dhs. 2.14
Regular price
Dhs. 2.25
Sale price
Dhs. 2.14
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | Dhs. 2.14 | Dhs. 2.14 |
| 15+ | Dhs. 2.07 | Dhs. 31.05 |
| 25+ | Dhs. 2.03 | Dhs. 50.75 |
| 50+ | Dhs. 1.91 | Dhs. 95.50 |
| 100+ | Dhs. 1.69 | Dhs. 169.00 |
| N+ | Dhs. 0.34 | Price Inquiry |
Shipping calculated at checkout.
Request Quote / Inquiry

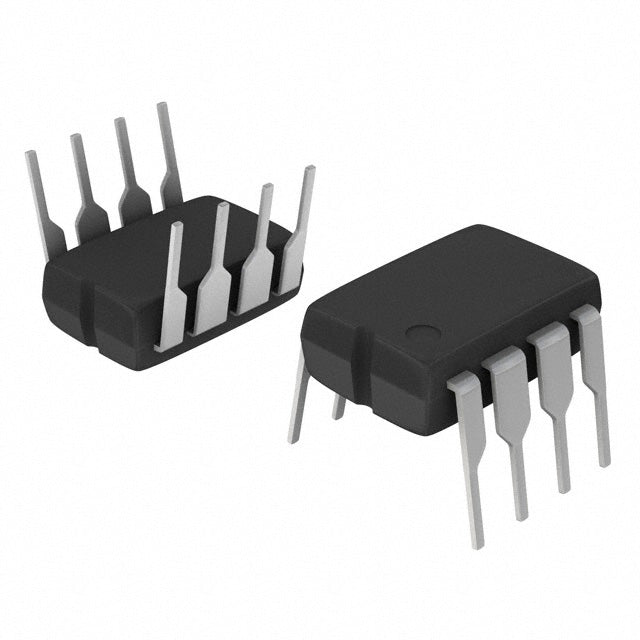

NCP1200AP40 Flyback Offline Switching Controller
The NCP1200AP40 from onsemi is a high-performance flyback offline switching controller designed for isolated AC-DC power conversion applications. Operating at 40kHz switching frequency with 83% duty cycle, this controller features comprehensive fault protection including current limiting, overload, and short circuit protection.
Key Features:
- Flyback topology for isolated power conversion
- 40kHz switching frequency for efficient operation
- 16V maximum supply voltage (Vcc/Vdd)
- 83% duty cycle capability
- Comprehensive protection: current limiting, overload, short circuit
- Wide operating temperature: 0°C to 125°C (TJ)
- Through-hole mounting in 8-DIP package
Applications: Ideal for low-power AC-DC converters, auxiliary power supplies, consumer electronics, industrial controls, and telecom equipment requiring reliable isolated power conversion.
As an authorized distributor, we provide 100% traceable, RoHS/REACH compliant components with full manufacturer documentation and long lifecycle support.
| Product attributes | Property Value |
| Manufacturer | onsemi |
| Product Series | |
| Packaging | Tube | |
| Output Isolation | Isolated |
| Internal Switch(s) | No |
| Voltage - Breakdown | - |
| Topology | Flyback |
| Voltage - Start Up | - |
| Voltage - Supply (Vcc/Vdd) | 16V (Max) |
| Duty Cycle | 83% |
| Frequency - Switching | 40kHz |
| Power (Watts) | - |
| Fault Protection | Current Limiting, Over Load, Short Circuit |
| Control Features | - |
| Operating Temperature | 0°C ~ 125°C (TJ) |
| Grade | - |
| Qualification | - |
| Mounting Type | Through Hole |
| Package / Case | 8-DIP (0.300", 7.62mm) |
| Supplier Device Package | 8-PDIP |
NCP1200AP40.pdf
×
