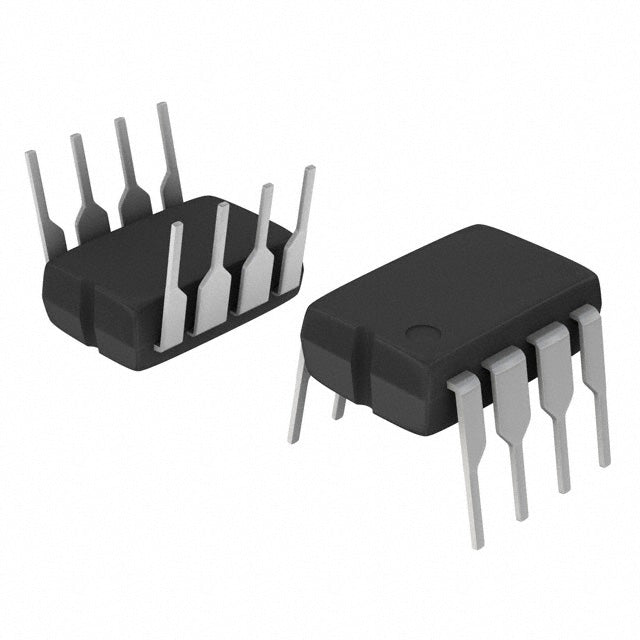

onsemi NCP1200AP60G
Regular price
Dhs. 3.33
Regular price
Dhs. 3.52
Sale price
Dhs. 3.33
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | Dhs. 3.33 | Dhs. 3.33 |
| 15+ | Dhs. 3.24 | Dhs. 48.60 |
| 25+ | Dhs. 3.17 | Dhs. 79.25 |
| 50+ | Dhs. 2.99 | Dhs. 149.50 |
| 100+ | Dhs. 2.64 | Dhs. 264.00 |
| N+ | Dhs. 0.53 | Price Inquiry |
Shipping calculated at checkout.
Request Quote / Inquiry
NCP1200AP60G - Fixed Frequency Flyback PWM Controller IC
The NCP1200AP60G from onsemi is a high-performance fixed-frequency current-mode PWM controller designed for cost-effective offline flyback power supplies. This IC delivers reliable power conversion with integrated protection features for industrial, consumer, and telecom applications.
Key Features & Benefits
- Fixed 60kHz Switching Frequency - Predictable EMI performance and simplified filter design
- 83% Maximum Duty Cycle - Optimized power delivery and transformer utilization
- Comprehensive Fault Protection - Current limiting, overload, and short circuit protection ensure system reliability
- Isolated Flyback Topology - Provides galvanic isolation between input and output
- Wide Operating Temperature Range - 0°C to 125°C junction temperature for demanding environments
- Through-Hole 8-DIP Package - Easy prototyping, repair, and legacy system integration
Typical Applications
- AC/DC offline power supplies
- Auxiliary power for industrial equipment
- Battery chargers and adapters
- Telecom and networking infrastructure
- Consumer electronics power management
RoHS Compliant | Authorized Distributor | Full Traceability
| Product attributes | Property Value |
| Manufacturer | onsemi |
| Product Series | |
| Packaging | Tube | |
| Output Isolation | Isolated |
| Internal Switch(s) | No |
| Voltage - Breakdown | - |
| Topology | Flyback |
| Voltage - Start Up | - |
| Voltage - Supply (Vcc/Vdd) | 16V (Max) |
| Duty Cycle | 83% |
| Frequency - Switching | 60kHz |
| Power (Watts) | - |
| Fault Protection | Current Limiting, Over Load, Short Circuit |
| Control Features | - |
| Operating Temperature | 0°C ~ 125°C (TJ) |
| Grade | - |
| Qualification | - |
| Mounting Type | Through Hole |
| Package / Case | 8-DIP (0.300", 7.62mm) |
| Supplier Device Package | 8-PDIP |
NCP1200AP60G.pdf
×
