onsemi NCP1200P100G
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | Dhs. 2.32 | Dhs. 2.32 |
| 15+ | Dhs. 2.24 | Dhs. 33.60 |
| 25+ | Dhs. 2.20 | Dhs. 55.00 |
| 50+ | Dhs. 2.07 | Dhs. 103.50 |
| 100+ | Dhs. 1.83 | Dhs. 183.00 |
| N+ | Dhs. 0.37 | Price Inquiry |
Request Quote / Inquiry

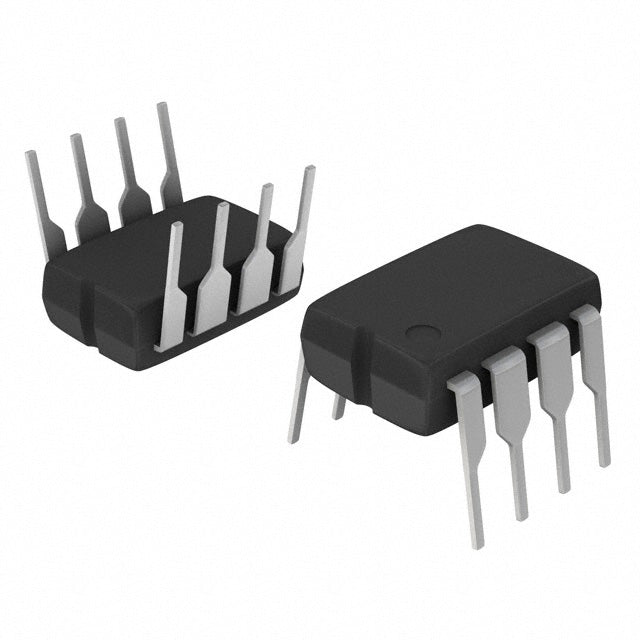

NCP1200P100G Flyback Offline Switching Controller
The NCP1200P100G from onsemi is a high-performance flyback topology switching controller designed for isolated AC-DC power supply applications. This cost-effective solution delivers reliable performance with integrated fault protection features including current limiting, overload protection, and short circuit protection.
Key Features & Benefits
- 100kHz Switching Frequency - Enables compact transformer design and reduced component size
- 80% Maximum Duty Cycle - Optimizes power transfer efficiency in flyback converters
- Comprehensive Protection - Built-in current limiting, overload, and short circuit protection safeguards your design
- Wide Operating Temperature Range - Reliable operation from -25°C to 125°C (TJ) for demanding environments
- Through-Hole Mounting - Easy assembly and prototyping with standard 8-DIP package
- 16V Maximum Supply Voltage - Compatible with standard auxiliary supply designs
Typical Applications
- AC-DC offline power supplies
- Auxiliary power supplies for industrial equipment
- Battery chargers and adapters
- Consumer electronics power management
- Telecom and networking equipment
- Medical device power systems
Design Support
Full technical documentation, reference designs, and application notes are available to accelerate your design-in process. Our engineering team provides comprehensive support for power supply topology selection, component sizing, and compliance requirements.
Quality & Compliance
This product is RoHS compliant and sourced through authorized distribution channels, ensuring full traceability, authenticity, and manufacturer warranty coverage. All components meet stringent quality standards for aerospace, automotive, industrial, medical, and telecom applications.
Ordering Information
Part Number: NCP1200P100G
Package: 8-PDIP (Through Hole)
Packaging Options: Tube
Minimum Order Quantity: Contact for volume pricing
| Product attributes | Property Value |
| Manufacturer | onsemi |
| Product Series | |
| Packaging | Marketplace | Tube |
| Output Isolation | Isolated |
| Internal Switch(s) | No |
| Voltage - Breakdown | - |
| Topology | Flyback |
| Voltage - Start Up | - |
| Voltage - Supply (Vcc/Vdd) | 16V (Max) |
| Duty Cycle | 80% |
| Frequency - Switching | 100kHz |
| Power (Watts) | - |
| Fault Protection | Current Limiting, Over Load, Short Circuit |
| Control Features | - |
| Operating Temperature | -25°C ~ 125°C (TJ) |
| Grade | - |
| Qualification | - |
| Mounting Type | Through Hole |
| Package / Case | 8-DIP (0.300", 7.62mm) |
| Supplier Device Package | 8-PDIP |
| ROHS |  |
NCP1200P100G.pdf
