onsemi NCP1205PG
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | Dhs. 355,904.94 | Dhs. 355,904.94 |
| 15+ | Dhs. 344,665.84 | Dhs. 5,169,987.60 |
| 25+ | Dhs. 337,173.10 | Dhs. 8,429,327.50 |
| 50+ | Dhs. 318,441.26 | Dhs. 15,922,063.00 |
| 100+ | Dhs. 280,977.59 | Dhs. 28,097,759.00 |
| N+ | Dhs. 56,195.52 | Price Inquiry |
Request Quote / Inquiry
NCP1205PG Flyback Switching Controller
The NCP1205PG from onsemi is a high-performance isolated flyback switching controller designed for AC-DC offline power supply applications. This versatile controller IC delivers reliable power conversion with comprehensive fault protection features including current limiting, over-voltage protection, and short circuit protection.
Key Features
- Isolated Flyback Topology - Ideal for AC-DC offline switching applications
- Wide Supply Voltage Range - Operates from 8V to 30V (Vcc/Vdd)
- Variable Switching Frequency - 90kHz to 125kHz for optimized efficiency
- Comprehensive Protection - Current limiting, over-voltage, and short circuit protection
- Extended Temperature Range - Operates reliably from -25°C to 125°C (TJ)

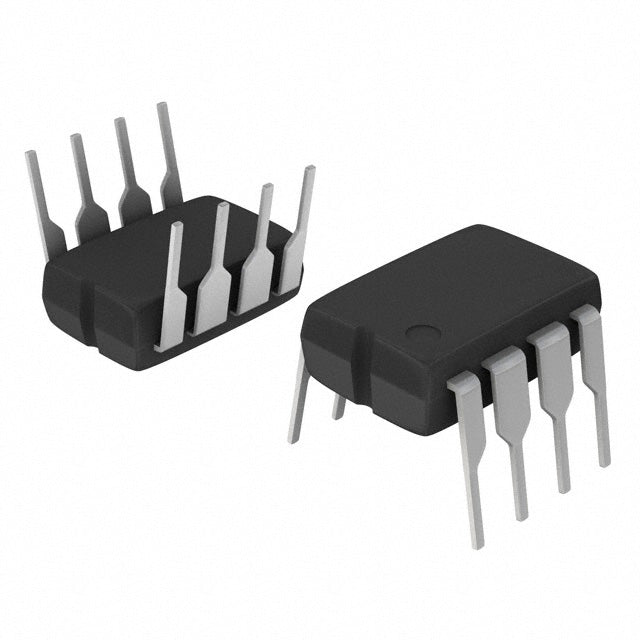

- Through-Hole Package - Easy integration with 8-DIP (0.300", 7.62mm) mounting
Applications
Perfect for aerospace, automotive, industrial, telecommunications, and medical power supply designs requiring long lifecycle support and proven reliability.
As an authorized distributor, we provide full traceability documentation and long lifecycle support for all onsemi semiconductor components.
Related Products & Resources
Explore our complete range of AC DC Converters, Offline Switchers for more power management solutions. Visit HQICKEY to browse our full catalog of semiconductor components, or check out our Technical Blog for application notes, design guides, and industry insights.
| Product attributes | Property Value |
| Manufacturer | onsemi |
| Product Series | |
| Packaging | | |
| Output Isolation | Isolated |
| Internal Switch(s) | No |
| Voltage - Breakdown | - |
| Topology | Flyback |
| Voltage - Start Up | - |
| Voltage - Supply (Vcc/Vdd) | 8V ~ 30V |
| Duty Cycle | - |
| Frequency - Switching | 90kHz ~ 125kHz |
| Power (Watts) | - |
| Fault Protection | Current Limiting, Over Voltage, Short Circuit |
| Control Features | - |
| Operating Temperature | -25°C ~ 125°C (TJ) |
| Grade | - |
| Qualification | - |
| Mounting Type | Through Hole |
| Package / Case | 8-DIP (0.300", 7.62mm) |
| Supplier Device Package | 8-PDIP |
NCP1205PG.pdf
