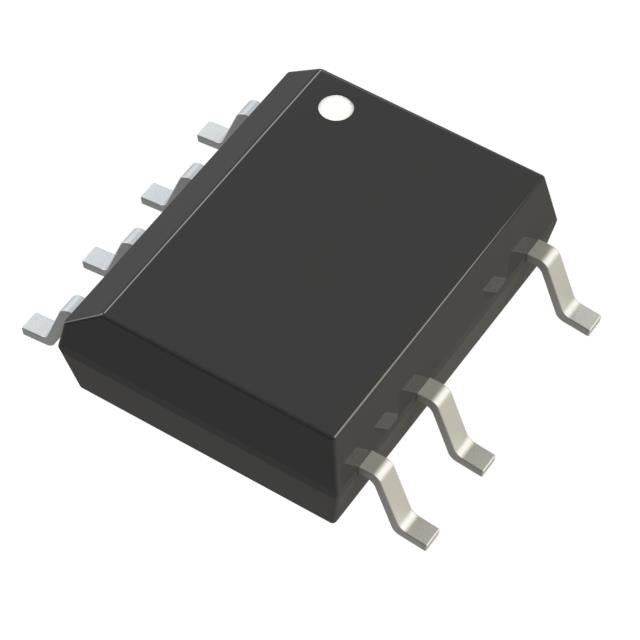

onsemi NCP1207BDR2G
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | Dhs. 355,842.93 | Dhs. 355,842.93 |
| 15+ | Dhs. 344,605.78 | Dhs. 5,169,086.70 |
| 25+ | Dhs. 337,114.35 | Dhs. 8,427,858.75 |
| 50+ | Dhs. 318,385.78 | Dhs. 15,919,289.00 |
| 100+ | Dhs. 280,928.63 | Dhs. 28,092,863.00 |
| N+ | Dhs. 56,185.73 | Price Inquiry |
Request Quote / Inquiry
NCP1207BDR2G - Flyback PWM Controller IC by onsemi
The NCP1207BDR2G is a high-performance flyback PWM controller IC from onsemi, designed for isolated AC-DC and DC-DC power supply applications. This advanced power management IC features comprehensive fault protection including current limiting, over-load, over-temperature, and over-voltage protection, ensuring reliable operation in demanding industrial, automotive, medical, and telecom applications.
Key Features & Benefits:
- Isolated Flyback Topology - Ideal for AC-DC offline power conversion
- Wide Supply Voltage Range - 10.6V to 20V (Vcc/Vdd) for flexible design integration
- High Switching Frequency - Up to 200kHz for compact transformer design
- Comprehensive Protection - Current limiting, over-load, over-temperature, and over-voltage safeguards
- Extended Temperature Range - -40°C to 125°C (TJ) for harsh environments
- Space-Saving Package - 7-SOIC surface mount for high-density PCB layouts
- RoHS Compliant - Meets environmental and regulatory standards
Applications:
Perfect for power supplies in industrial automation, medical equipment, telecommunications infrastructure, consumer electronics, and automotive systems requiring long lifecycle support and full traceability.
Authorized Distributor - We provide 100% traceable, genuine onsemi components with full manufacturer documentation and long lifecycle commitment. All products ship with RoHS/REACH compliance certification.
| Product attributes | Property Value |
| Manufacturer | onsemi |
| Product Series | |
| Packaging | | |
| Output Isolation | Isolated |
| Internal Switch(s) | No |
| Voltage - Breakdown | - |
| Topology | Flyback |
| Voltage - Start Up | - |
| Voltage - Supply (Vcc/Vdd) | 10.6V ~ 20V |
| Duty Cycle | - |
| Frequency - Switching | Up to 200kHz |
| Power (Watts) | - |
| Fault Protection | Current Limiting, Over Load, Over Temperature, Over Voltage |
| Control Features | - |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | 8-SOIC (0.154", 3.90mm Width), 7 Leads |
| Supplier Device Package | 7-SOIC |
| ROHS |  |
No datasheet available. Please contact sales@hqickey.com for the latest datasheet.
