onsemi NCP1216P65
Regular price
Dhs. 2.92
Regular price
Dhs. 3.07
Sale price
Dhs. 2.92
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | Dhs. 2.92 | Dhs. 2.92 |
| 15+ | Dhs. 2.82 | Dhs. 42.30 |
| 25+ | Dhs. 2.76 | Dhs. 69.00 |
| 50+ | Dhs. 2.61 | Dhs. 130.50 |
| 100+ | Dhs. 2.30 | Dhs. 230.00 |
| N+ | Dhs. 0.46 | Price Inquiry |
Shipping calculated at checkout.
Request Quote / Inquiry

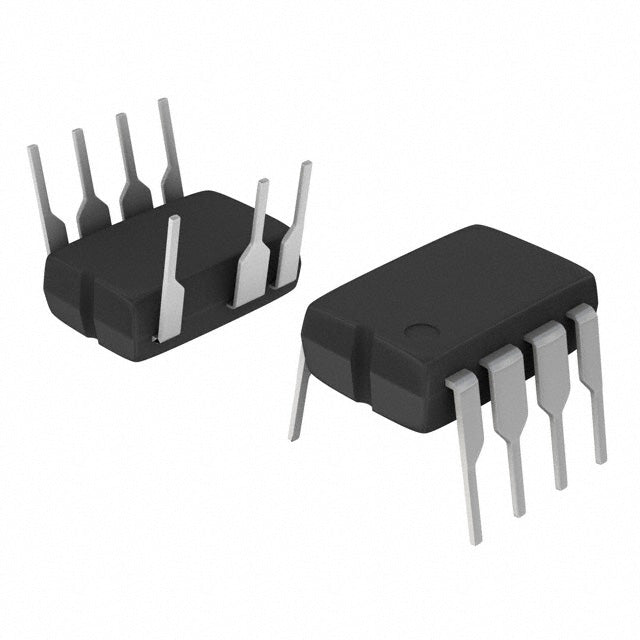

NCP1216P65 Flyback PWM Controller IC
The NCP1216P65 from onsemi is a high-performance isolated flyback PWM controller designed for AC-DC offline switching applications. This controller IC features a 65kHz switching frequency, 75% duty cycle, and comprehensive fault protection including over-load, over-temperature, and short-circuit safeguards.
Key Features:
- Isolated flyback topology for safe AC-DC conversion
- 65kHz switching frequency for efficient power conversion
- 10V to 16V supply voltage range (Vcc/Vdd)
- 75% maximum duty cycle
- Comprehensive protection: Over-load, over-temperature, short-circuit
- Wide operating temperature: 0°C to 150°C (TJ)
- Through-hole mounting for reliable assembly
- 7-PDIP package (8-DIP, 0.300", 7.62mm, 7 leads)
Applications: Power supplies, battery chargers, LED drivers, industrial control systems, consumer electronics, and any application requiring reliable AC-DC power conversion with robust protection features.
| Product attributes | Property Value |
| Manufacturer | onsemi |
| Product Series | |
| Packaging | Tube | |
| Output Isolation | Isolated |
| Internal Switch(s) | No |
| Voltage - Breakdown | - |
| Topology | Flyback |
| Voltage - Start Up | - |
| Voltage - Supply (Vcc/Vdd) | 10V ~ 16V |
| Duty Cycle | 75% |
| Frequency - Switching | 65kHz |
| Power (Watts) | - |
| Fault Protection | Over Load, Over Temperature, Short Circuit |
| Control Features | - |
| Operating Temperature | 0°C ~ 150°C (TJ) |
| Grade | - |
| Qualification | - |
| Mounting Type | Through Hole |
| Package / Case | 8-DIP (0.300", 7.62mm), 7 Leads |
| Supplier Device Package | 7-PDIP |
NCP1216P65.pdf
×
