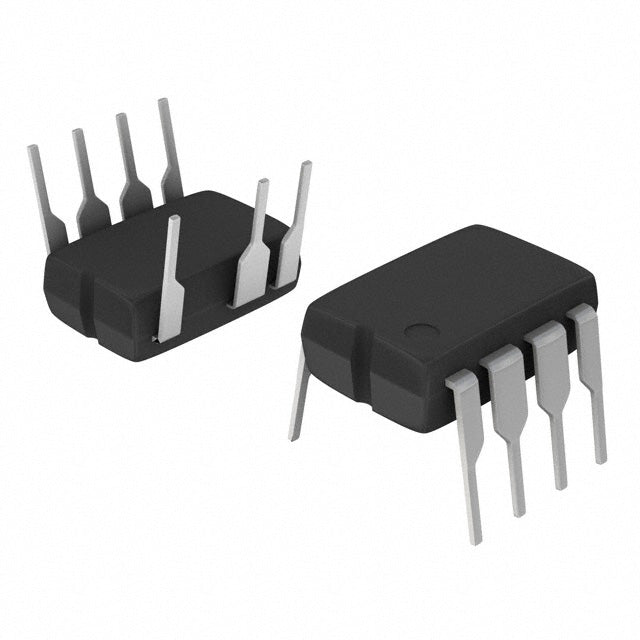

onsemi NCP1230P65G
Regular price
Dhs. 355,985.37
Regular price
Dhs. 374,721.44
Sale price
Dhs. 355,985.37
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | Dhs. 355,985.37 | Dhs. 355,985.37 |
| 15+ | Dhs. 344,743.72 | Dhs. 5,171,155.80 |
| 25+ | Dhs. 337,249.30 | Dhs. 8,431,232.50 |
| 50+ | Dhs. 318,513.22 | Dhs. 15,925,661.00 |
| 100+ | Dhs. 281,041.08 | Dhs. 28,104,108.00 |
| N+ | Dhs. 56,208.22 | Price Inquiry |
Shipping calculated at checkout.
Request Quote / Inquiry
The NCP1230P65G from onsemi is a high-performance 65kHz Flyback AC/DC Offline Switching Controller designed for reliable power conversion applications. This through-hole mounted controller features comprehensive fault protection including current limiting, over-temperature, over-voltage, and short circuit protection, making it ideal for industrial, automotive, and aerospace power supply designs.
Key Features:
- 65kHz switching frequency for efficient power conversion
- Flyback topology with isolated output
- Wide operating voltage range: 7.7V to 18V (Vcc/Vdd)
- 12.6V start-up voltage
- 80% duty cycle capability
- Extended operating temperature: -40°C to 125°C (TJ)
- Comprehensive fault protection: current limiting, over-temperature, over-voltage, short circuit
- 7-PDIP package for easy integration
Applications:
The NCP1230P65G is perfectly suited for AC/DC power supply designs in industrial equipment, consumer electronics, and embedded systems requiring reliable isolated power conversion with robust protection features.
Related Products & Resources:
| Product attributes | Property Value |
| Manufacturer | onsemi |
| Product Series | |
| Packaging | Marketplace | |
| Output Isolation | Isolated |
| Internal Switch(s) | No |
| Voltage - Breakdown | - |
| Topology | Flyback |
| Voltage - Start Up | 12.6 V |
| Voltage - Supply (Vcc/Vdd) | 7.7V ~ 18V |
| Duty Cycle | 80% |
| Frequency - Switching | 65kHz |
| Power (Watts) | - |
| Fault Protection | Current Limiting, Over Temperature, Over Voltage, Short Circuit |
| Control Features | - |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Grade | - |
| Qualification | - |
| Mounting Type | Through Hole |
| Package / Case | 8-DIP (0.300", 7.62mm), 7 Leads |
| Supplier Device Package | 7-PDIP |
| ROHS |  |
NCP1230P65G.pdf
×
